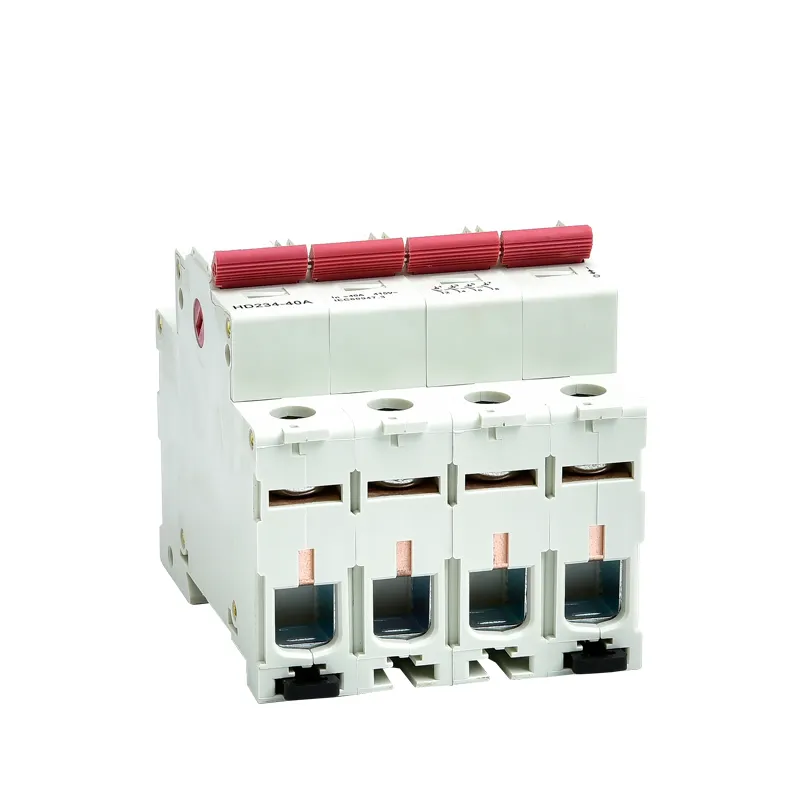

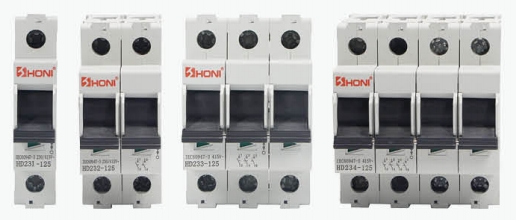

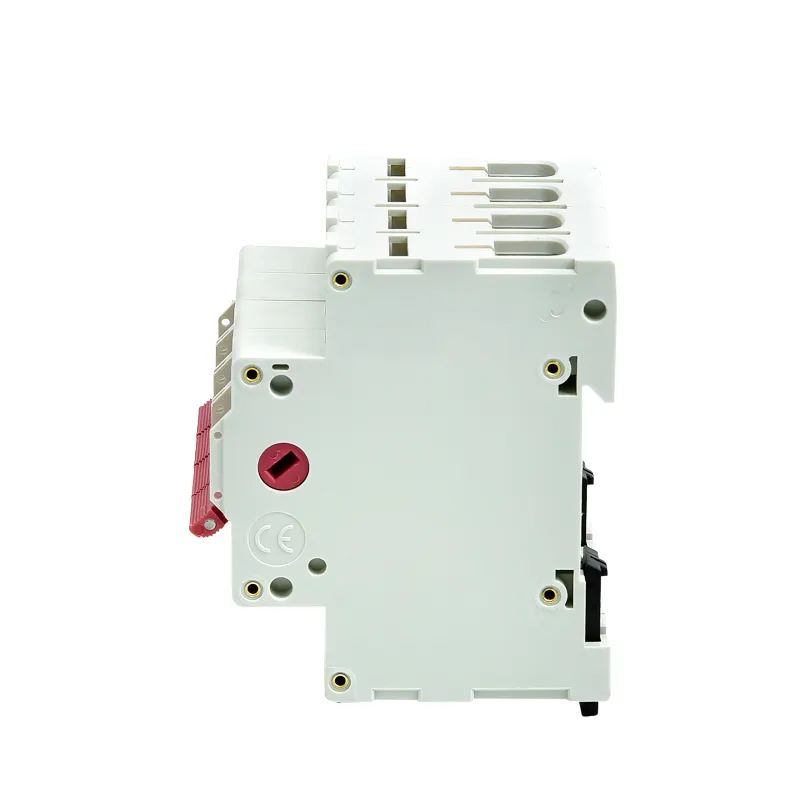

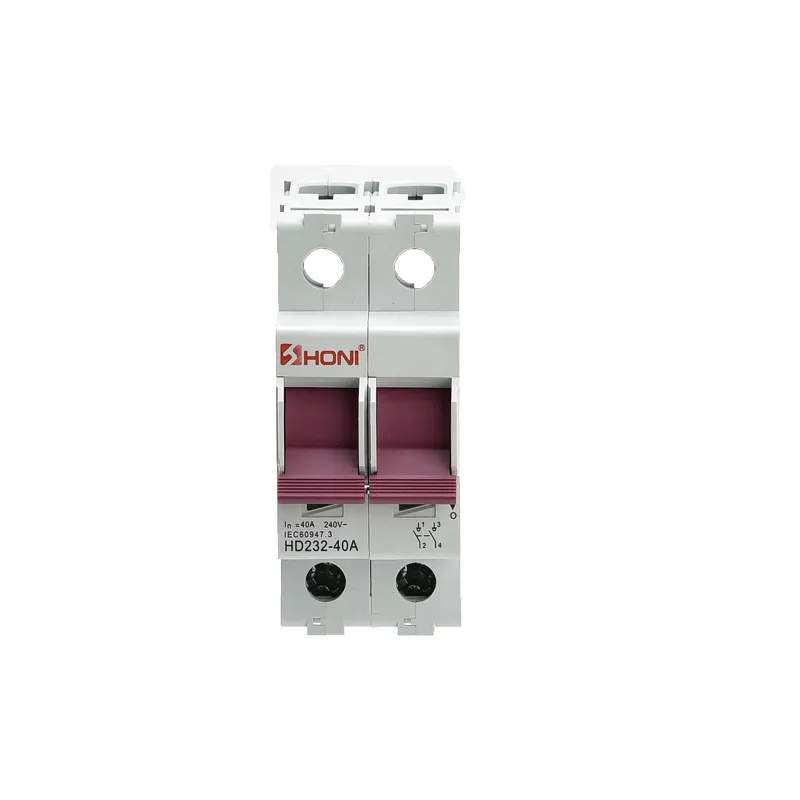

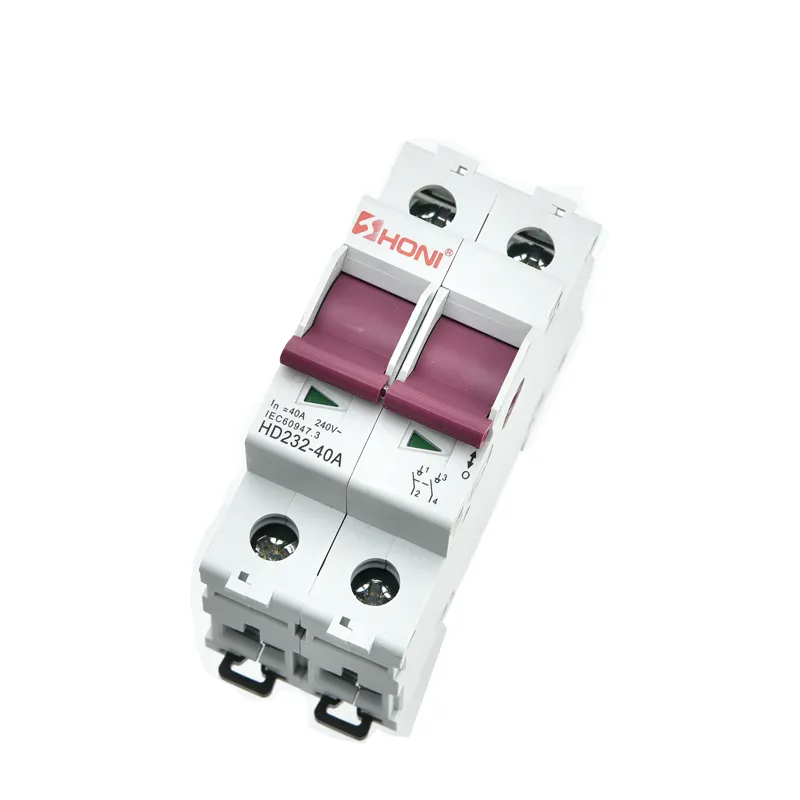

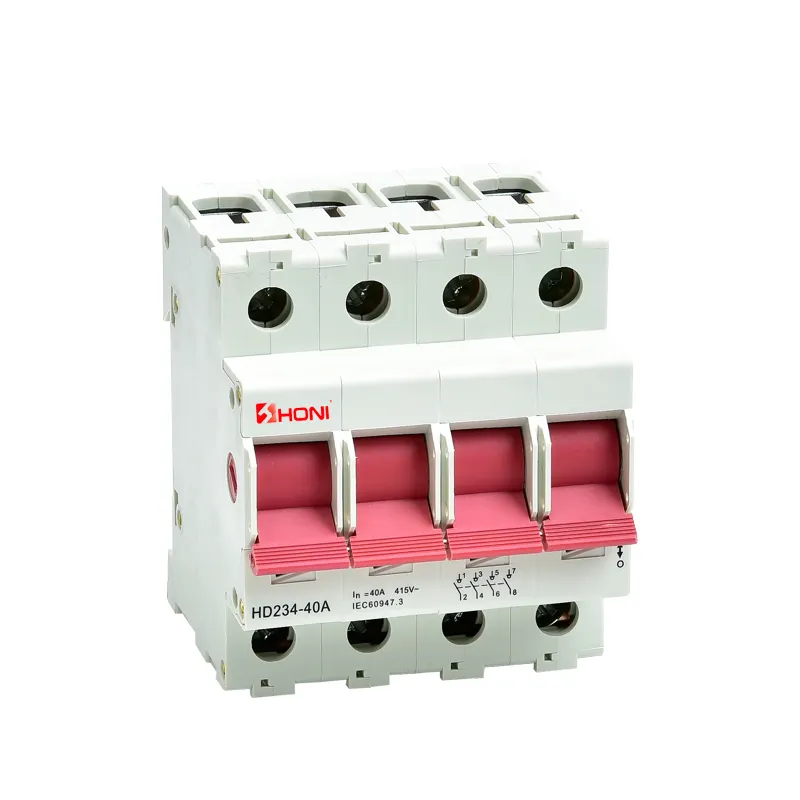

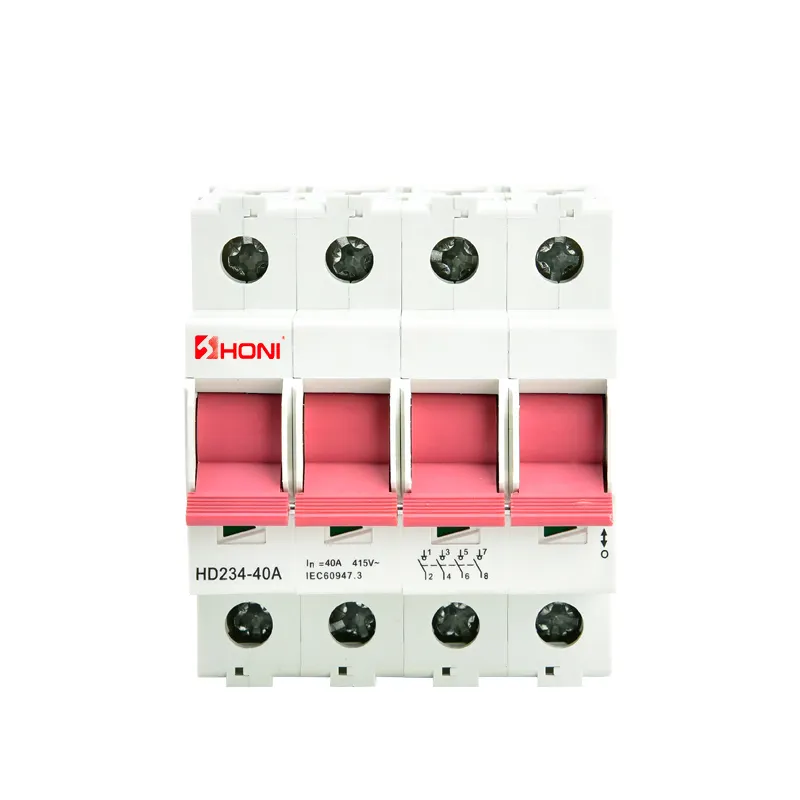

HD231-125/HD232-125/HD233-125/HD234-125 Main Load Disconnector Switch
• Load circuit breaker with isolating function
• Highly wear resistant contacts
• Quick make
• Terminal capacity 50 mm²
• Compatible busbars
• 1-, 2-, 3-, 4 pole
Product Details
Overview
• Load circuit breaker with isolating function
• Highly wear resistant contacts
• Quick make
• Terminal capacity 50 mm²
• Compatible busbars
• 1-, 2-, 3-, 4-pole

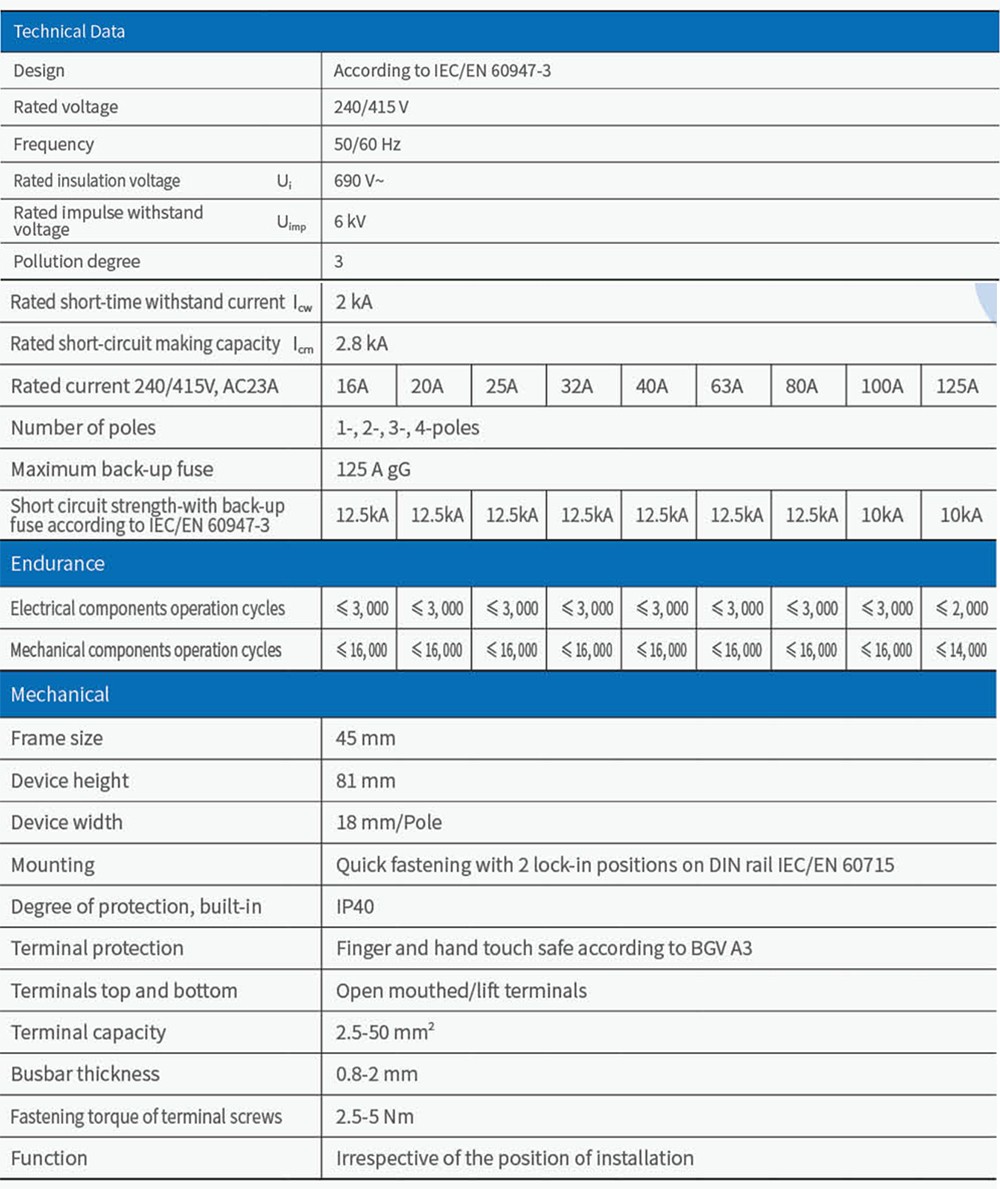

Technical Data

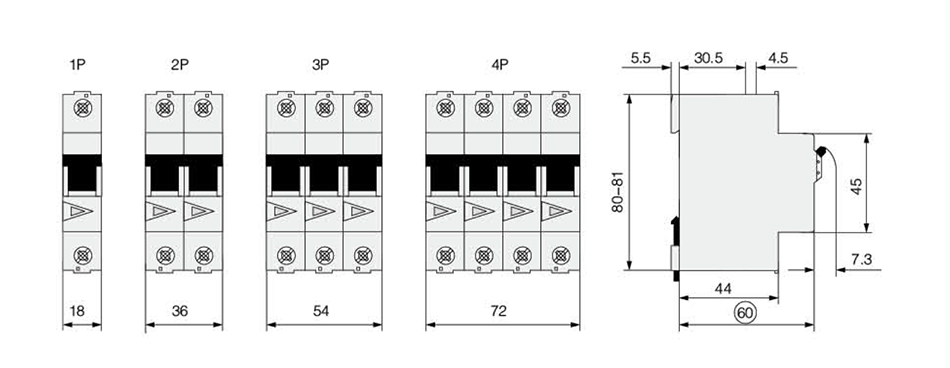

Dimensions（mm）
