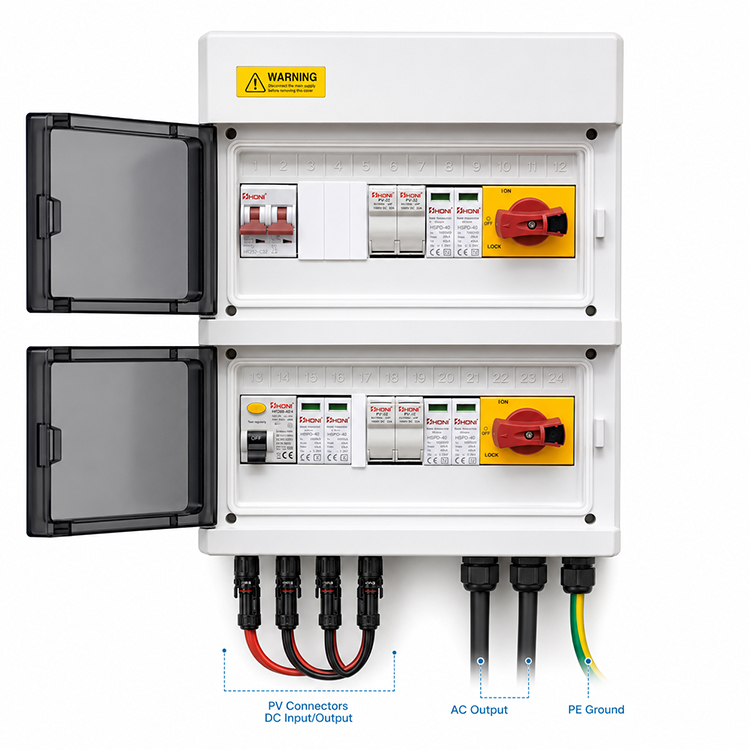

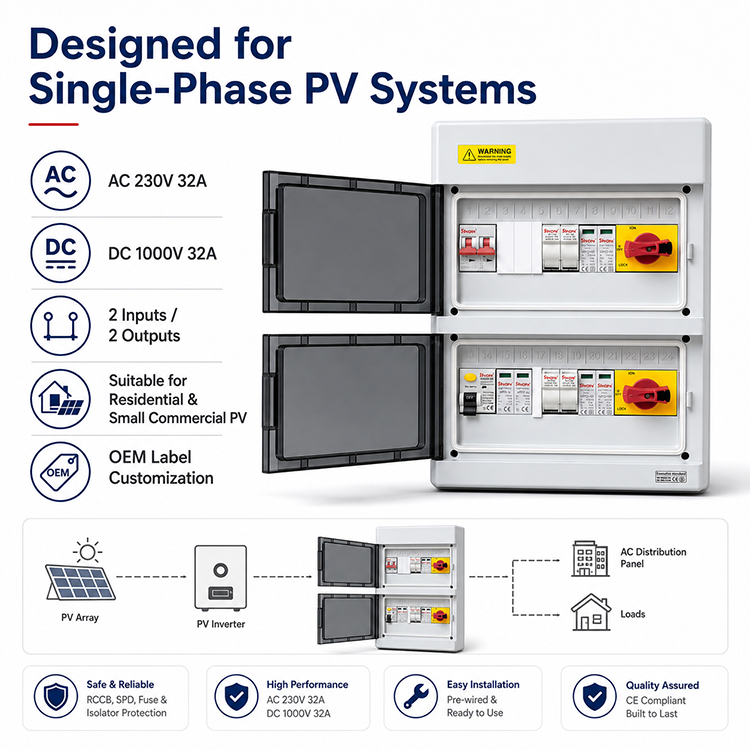

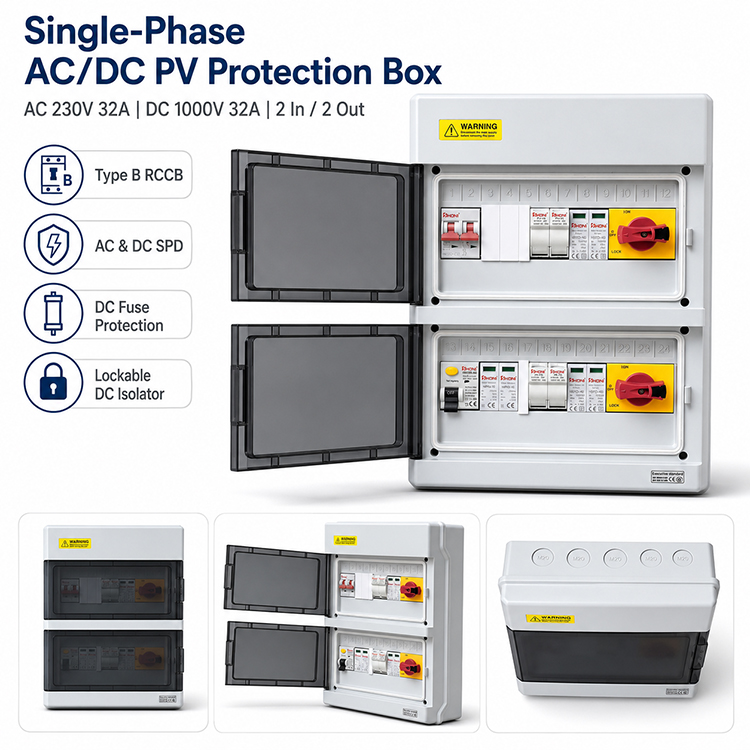

Integrated single-phase AC and DC protection solution for residential and commercial PV installations, featuring 230VAC 32A protection, two 1000VDC input/output circuits, Type B RCCB, Type 2 surge protection, DC fuses and lockable DC isolators.

    Product Details
    Keywords

      HONI Single Phase AC DC Cabinet FR Spec


    Product Description


    1Product TypeSingle-Phase AC/DC Solar PV Protection Box
    2AC SystemSingle Phase, 1P+N
    3AC Rated Voltage230VAC, 50/60Hz
    4AC Rated Current32A
    5DC Rated VoltageUp to 1000VDC
    6DC Rated Current32A Per Circuit
    7PV String Configuration2 Inputs / 2 Outputs
    8Residual Current ProtectionType B RCCB, 40A, 30mA
    9Surge ProtectionType 2 AC SPD and Type 2 DC SPD

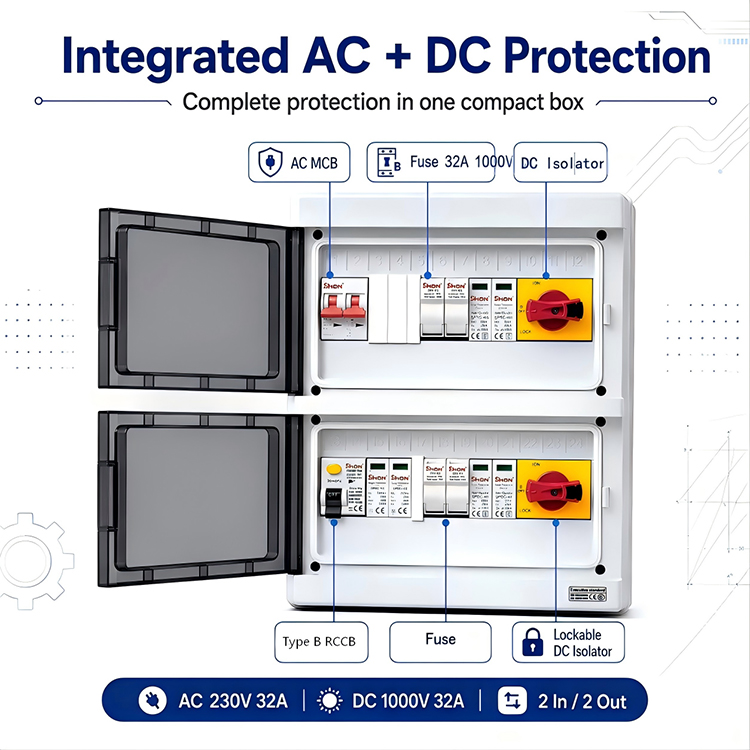

    10Integrated Protection DevicesAC MCB, Type B RCCB, DC Fuse, AC/DC SPD and Lockable DC Isolator



    Solar AC DC Protection Box

    Single Phase PV Combiner Box

    1000V DC Solar Distribution Box

    AC DC Solar Combiner Box

    Solar PV Protection Box

    Single Phase Solar Distribution Box

    PV AC DC Distribution Box

    Solar Inverter Protection Box
