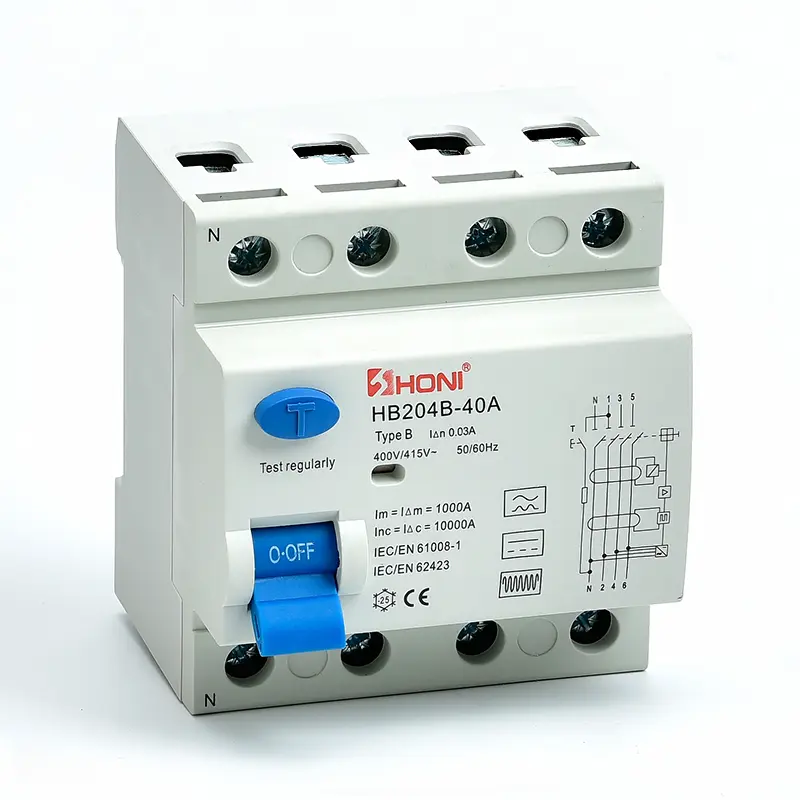

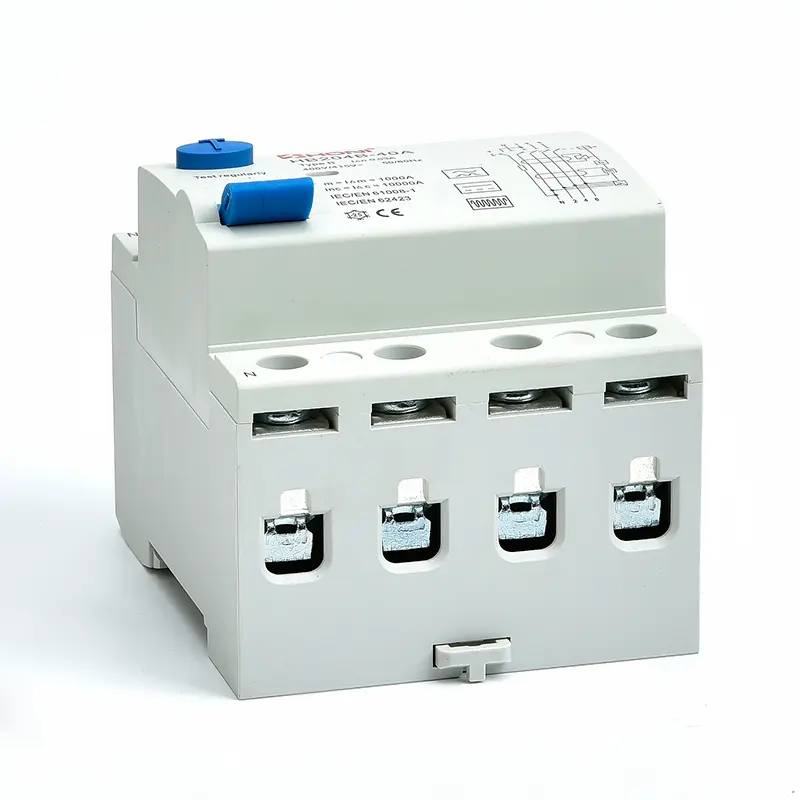

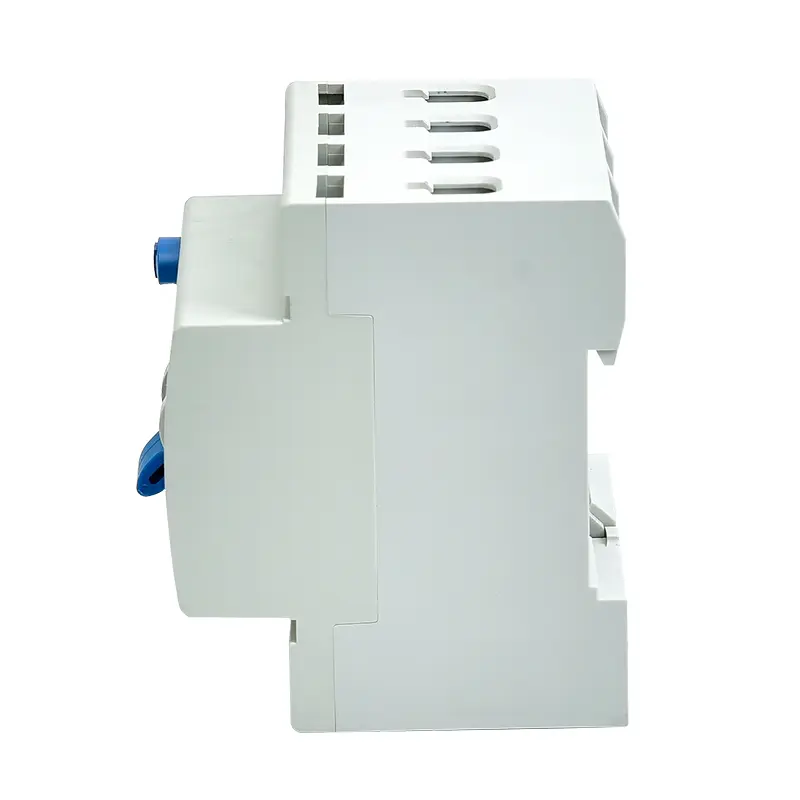

RCCB-B-80A Residual Current Circuit Breaker

Scope of application

In addition to fault currents in the AC and pulse current range,type B also detects DC fault currents,which can occur in frequency inverter controls,photovoltaic systems as well as through the electronic use in households,and increases safety considerably

Applications with

In addition to fault currents in the AC and pulse current range,type B also detects DC fault currents,which can occur in frequency inverter controls,photovoltaic systems as well as through the electronic use in households,and increases safety considerably

● Applications with:

. Appliances and motors with 1Phase frequency converters with PFC([Power factor compensation)or .1 phase frequency converters supplied between phase/phase or .3 phase frequency converters

. DC systems(photovoltaic systems,ups units..)

. In front of PV Systems/ Battery banks/ UPS Units/EV charging Medical devices/ Frequency converters/ Motor controllers

. Sensitive to all residual currents according up to lkHz.

Residual Current Devices-General Data

Short description of the most important RCD types:

Symbol Description

HONI standard. Suitable for outdoor installation (distribution boxes for outdoor installation and building sites+-25 up to -25℃ .

Type AC: AC current sensitive RCCB

Type A: AC and pulsating DC current sensitive RCCB

Trip also at frequency composition(10 Hz,50 Hz, 1000 Hz)

Type B:All-current sensitive RCD switchgear for applications where DC fault currents may occur.Non-selective non- delayed. Protection against all kinds of fault currents.

Electrical characteristics

ITEMS					DATA
Rated voltage					1P+N 240V,3P+N 415V
Rated current					16A 25A 32A 40A 80A
Rated residual operating current					0.03A,0.1A,0.3A,0.5A
Rated residual current type					AC+A+DC+F+high frequency 1kHz
Rated impulse withstand voltage(Uimp)					4kv
According to IEC/EN 61008-1
Making and breaking capacity(Im/IDm)					1250A
Surge current withstand(8/20 ㎲)without tripping	B types(selective)				3 kA
	B types(no selective)				3 kA
Rated short-circuit Bresking Capability					1000A
Addition characteristics
Degree of protection	Device only				IP20IP40 with screw shield
	Device in modular enclosure				IP40Insulation class ll
Endurance(O-C)		Electrical			>2000 cycles
		Mechanical			>5000 cycles
Operatingtemperature					-25℃to+60℃/-40℃F to +140°F
Storage temperature			B type		-40℃to+60℃/-40℃F to +140°F
Range of test button operating voltage			30mA	2P	160...250V AC
				4P	250...440V AC
			100,300,500mA	2P	185...250VAC
				4P	185...440V AC
Connectinf capactity					16 mm2
Tightening torque					3N.m
Pollution degree					Level 2
Installation Category					ll

Weight(g/oz)

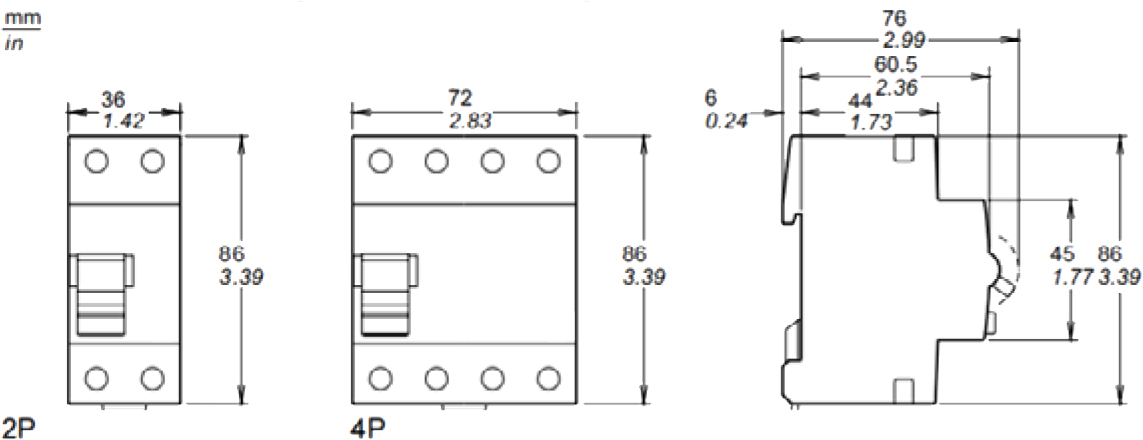

Dimensions (mm / inches) RCCB-B-80A
