•Contact position indicator window, with clear working status at a glance;

•Rail type installation, with a large travel of the installation buckle, the product can be quickly replaced after installation;

•Meet the energy level 3 requirements of the EU EN standard to enhance the safety of electrical systems;

•Complete accessory configuration;

•Optional breaking capacity of 6kA/10KA;

•DC has no polarity and the maximum voltage reaches DC1000V.

    Overview

    •Contact position indicator window, with clear working status at a glance;

    •Rail type installation, with a large travel of the installation buckle, the product can be quickly replaced after installation;

    •Meet the energy level 3 requirements of the EU EN standard to enhance the safety of electrical systems;

    •Complete accessory configuration;

    •Optional breaking capacity of 6kA/10KA;

    •DC has no polarity and the maximum voltage reaches DC1000V.

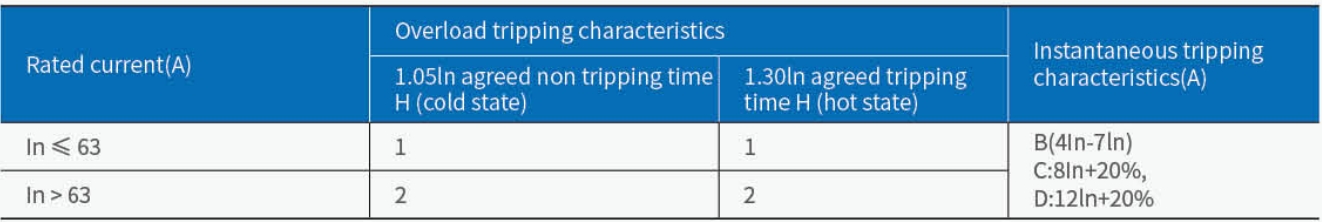

    Product Tripping Characteristics

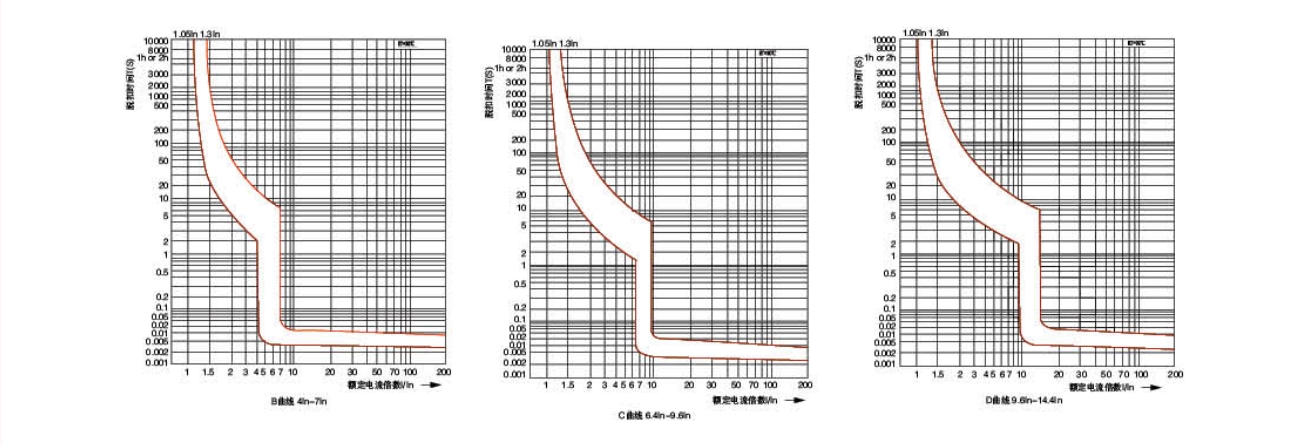

    Release Curve Diagram

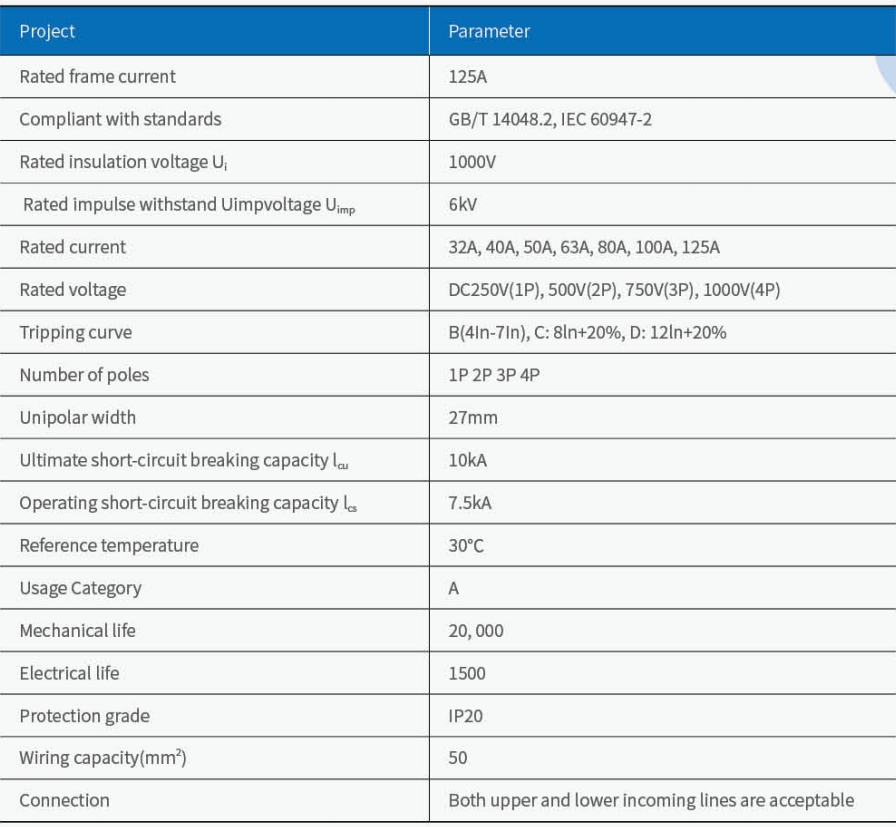

    Main Technical Parameters

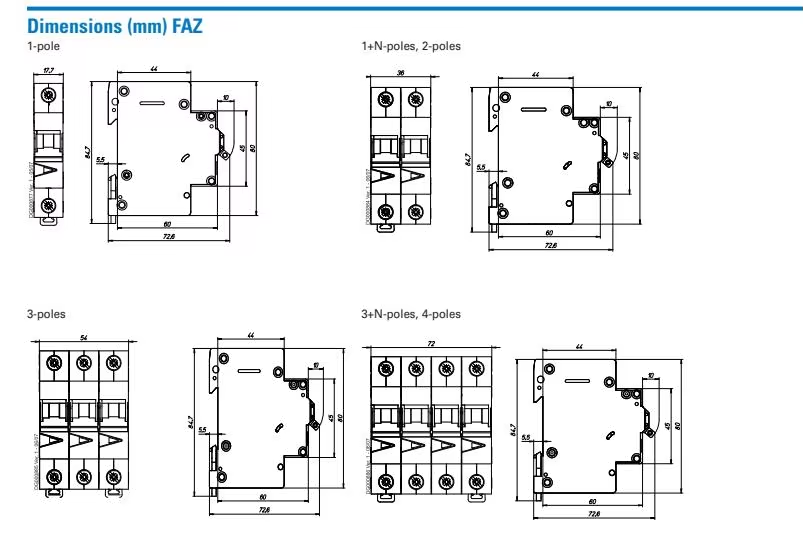

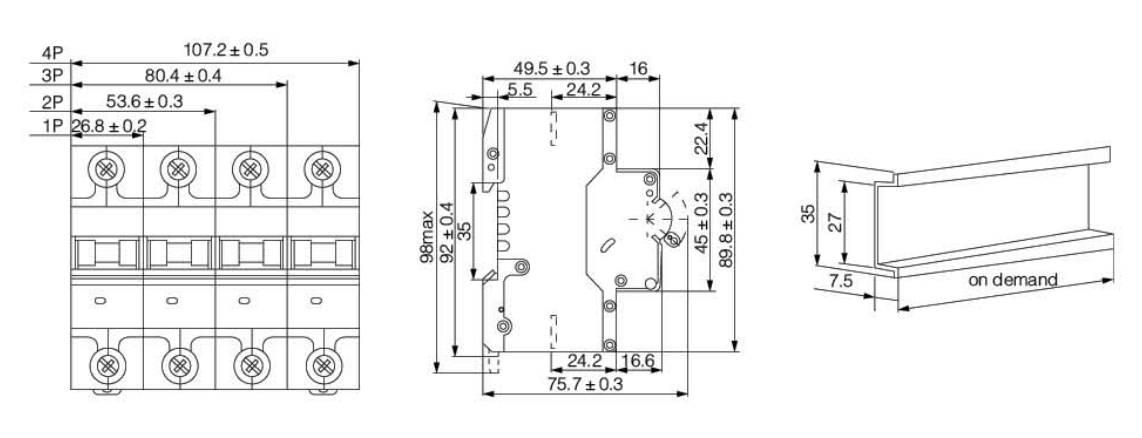

    Dimensions(mm)
