This DC MCB is designed for direct current (Dc) control circuit applications, providing short-circuit and overcurrent protection for appliances or electrical equipment, it offers optimized solutions for the following DC system applications: •Large-Capacity,High-Voltage Power SystemsUsed in power plants or grid systems to ensure stable power supply for relay protection, operational control, signaling, and emergency lighting.-Mini DC circuit breakers enhance system safety. •PV, EPS, and UPS Power Systems Critical components for renewable energy integration. •Rail Transit and Electric Vehicles Special rapid-analysis DC circuit breakers enable high-speed fault isolation. •Marine Power Systems Vital for ensuring safety in shipboard power supply and electrical equipment. |  |

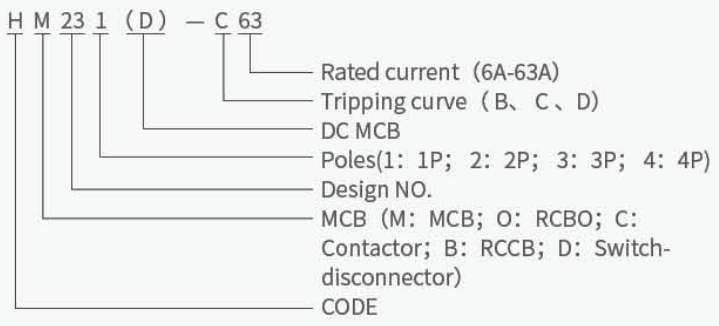

Tpye Explanation
| Construction and Feature•Protection against both overload and short circuit •High short-circuit capacity •Contact position indication •Applicable to terminal and pin/fork type busbar connection •Easy mounting onto 35mm DIN rail |
