• Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation • Provides complementary protection against direct contact by human body • Effectively protects electric equipment against insulating failure • Provides comprehensive protection to household and commercial distribution systems • 4 Gears rated residual operating current(mA):30,20,10,6 |  |

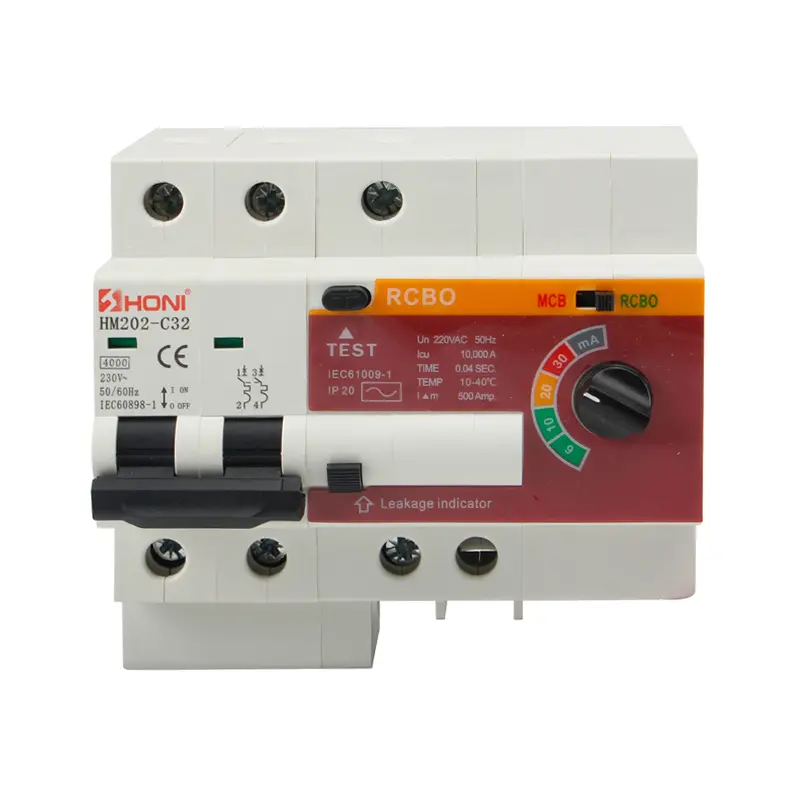

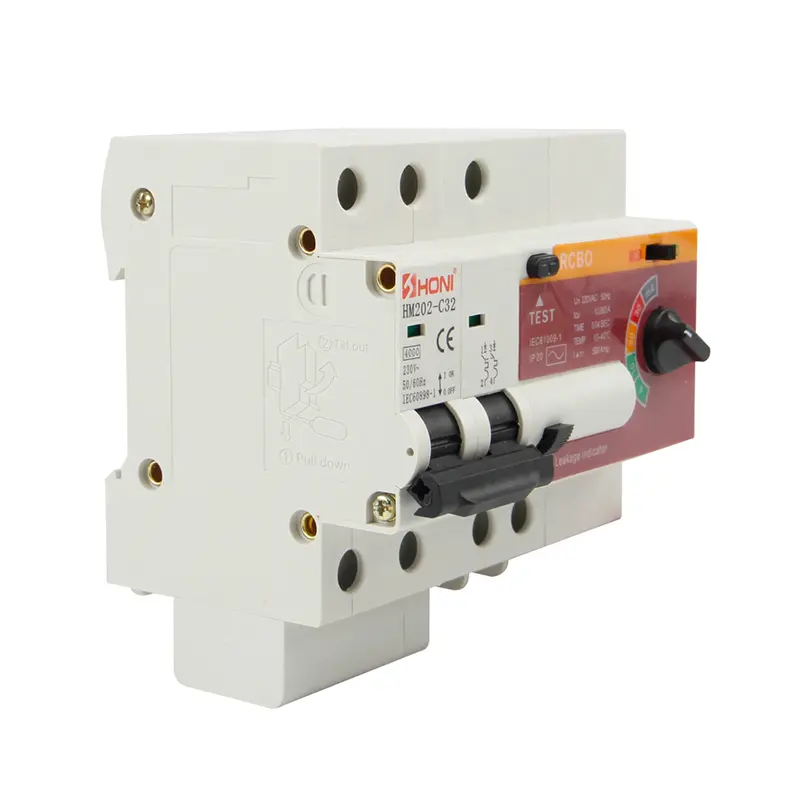

| Model: | H 0 202（D）— C 32 | |||||
| H | 0 | 20 | 2 | （D） | C | 32 |
| CODE
| RCBO （M: MCB； O: RCBO； C: Contactor； B: RCCB； D: Switch-disconnector）
| Design NO.
| Poles(1：1P； 2：2P； 3：3P； 4：4P)
| DC MCB
| Tripping curve（ B、 C 、D）
| Rated current（6A-63A）
|
Type：Electro type, Electro-magnetic type
Residual current characteristics: AC，A
Pole No.: 2P, 4P
Tripping curve: B, C
Rated short-circuit capacity: 6kA
Rated current (A): 6, 10, 16, 20, 25, 32, 40,50,63A;
Technical Data | |
Rated voltage: 230V，400V AC | |
Rated frequency: 50/60Hz | |
4 Gears rated residual operating current(mA): 30,20,10,6 | |
Tripping duration: instantaneous 0.1s | |
Electro-mechanical endurance: 4000 cycles | |
Connection terminal: pillar terminal with clamp | |
Technical Data | |
Rated voltage: 230V，400V AC | |
Connection capacity | Flexible conductor 10mm2 |
Rigid conductor 16mm | |
Installation | On symmetrical DIN rail 35mm |
Panel mounting | |

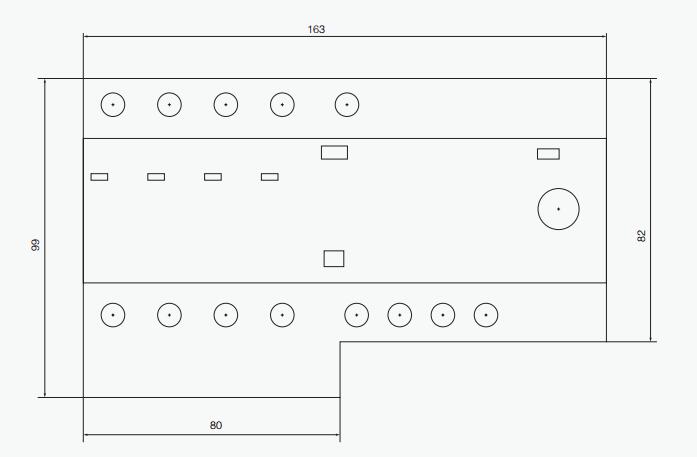

4P:163mm×99mm 2P:101mm×99mm |  |
