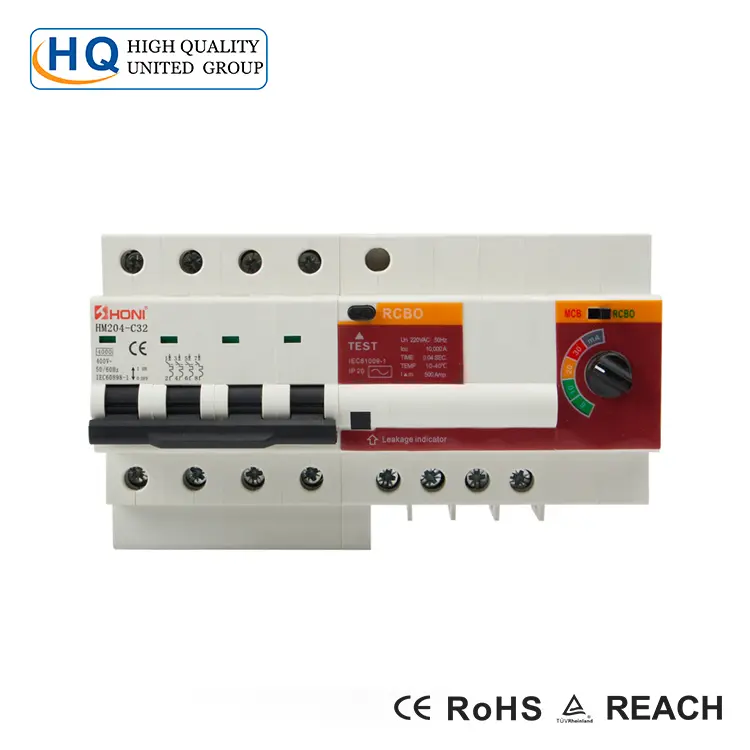

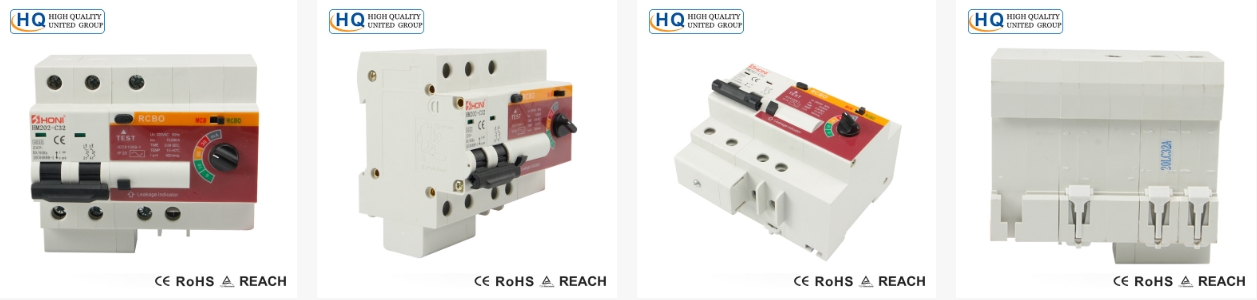

Construction and Feature
■Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation ■Provides complementary protection against direct contact by human body | ■Effectively protects electric equipment against insulating failure ■Provides comprehensive protection to household and commercial distribution systems |
Technical Data
■Type：Electro type, Electro-magnetic type ■Residual current characteristics: AC，A Selling point:The A type product after the design, three angles (0 degrees, 90 degrees, 135 degrees) the surplus working current scope is very small, positive and negative 4mA, in 16mA-24mA; But other company's A type product working current scope is very big, between 10mA-36mA. ■Pole No.: 1P+N ，3P+N（Selling point:At present this kind of 4 modulus's 4P in the RCBO market did not have, in the market present 4P RCBO is assembling） ■Tripping curve: B, C ■Rated short-circuit capacity: 10kA(Selling point: in the 10KA breaking present market did not have) ■Rated current (A): 1P+N:6, 10, 16, 20, 25, 32, 40,50,60A; 3P+N: 6, 10, 16, 20, 25, 32A; ■Rated voltage: 240V AC | ■Rated frequency: 50/60Hz ■Rated residual operating current(mA): 30,100,300 ■Tripping duration: instantaneous 0.1s ■Electro-mechanical endurance: 4000 cycles ■Connection terminal: pillar terminal with clamp ■Connection capacity: □Flexible conductor 10mm2 □Rigid conductor 16mm2 ■Installation: □On symmetrical DIN rail 35mm □Panel mounting |

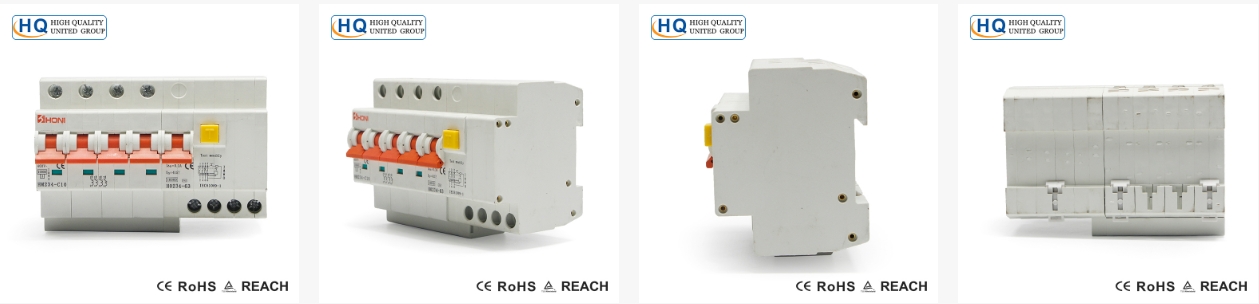

Construction and Feature
1.Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation
2.Provides complementary protection against direct contact by human body
3.Effectively protects electric equipment against insulating failure
4.Provides comprehensive protection to household and commercial distribution systems

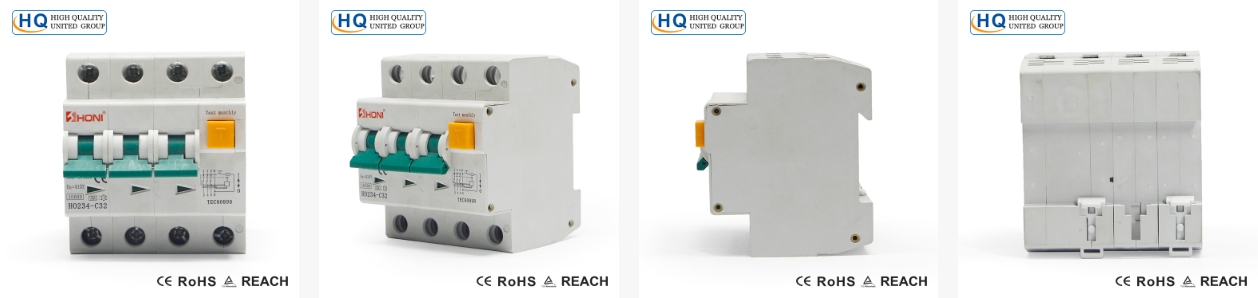

Technical Data
1.Type:Electro type, Electro-magnetic type
2.Residual current characteristics: AC,A Selling point:The A type product after the design, three angles (0 degrees, 90 degrees, 135 degrees) the surplus working current scope is very small, positive and negative 4mA, in 16mA-24mA; But other company's A type product working current scope is very big, between 10mA-36mA.

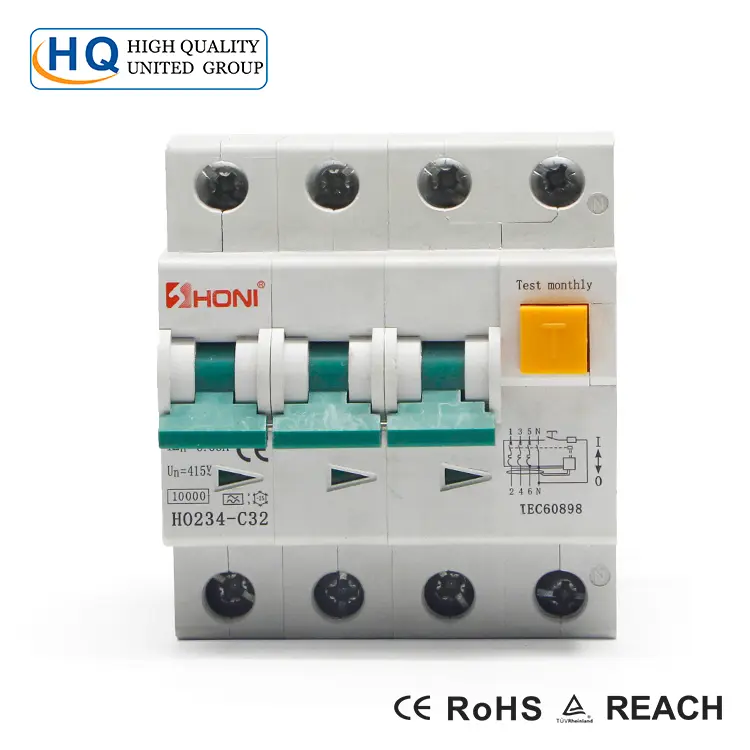

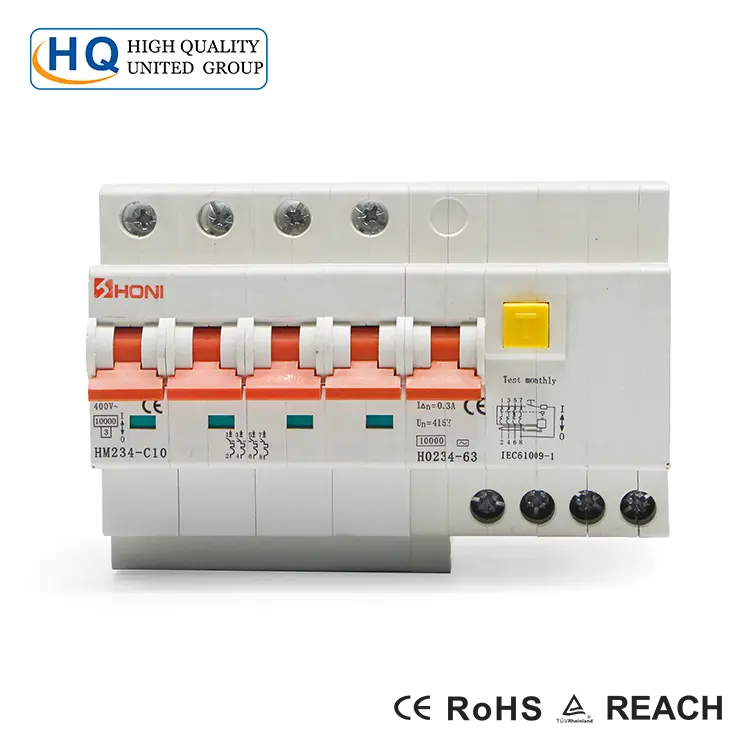

3.Pole No.: 1P+N ,3P+N(Selling point:At present this kind of 4 modulus's 4P in the RCBO market did not have, in the market present 4P RCBO is assembling)
4.Tripping curve: B, C
5.Rated short-circuit capacity: 10kA(Selling point: in the 10KA breaking present market did not have)
6.Rated current (A) 2P: 6, 10, 16, 20, 25, 32, 40,50,60;4P:6,10,16,20,25,32;
7.Rated voltage: 230/400V AC
8.Rated frequency: 50/60Hz
9.Rated residual operating current(mA): 6ma ,10ma ,20ma,30ma
10.Tripping duration: instantaneous 0.1s
11.Electro-mechanical endurance: 4000 cycles

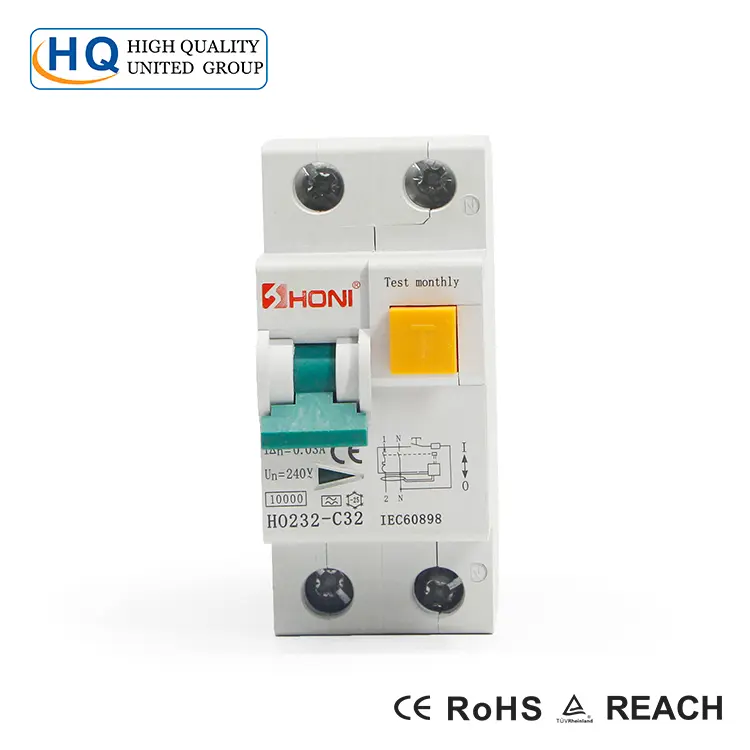

Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation Provides complementary protection against direct contact by human body
Effectively protects electric equipment against insulating failure
Provides comprehensive protection to household and commercial distribution systems Features

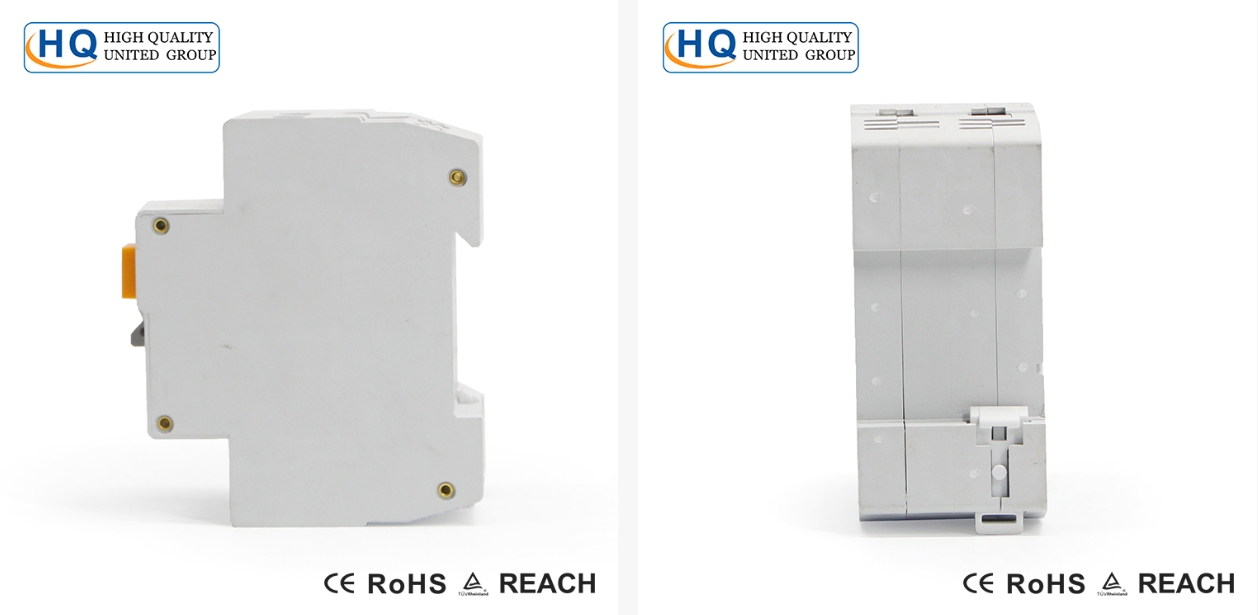

Type:Electro type, Electro-magnetic type
Residual current characteristics: AC,A Selling point:The A type product after the design, three angles (0 degrees, 90 degrees, 135 degrees) the surplus working current scope is very small, positive and negative 4mA, in 16mA-24mA; But other company's A type product working current scope is very big, between 10mA-36mA.

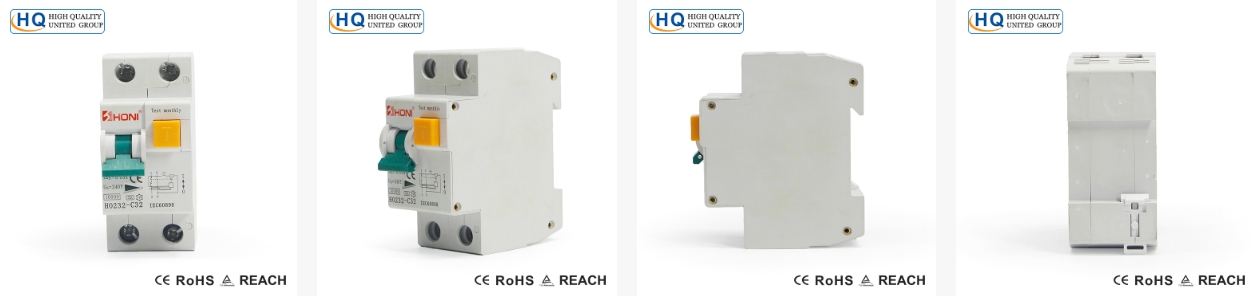

Pole No.: 1P+N ,3P+N(Selling point:At present this kind of 4 modulus's 4P in the RCBO market did not have, in the market present 4P RCBO is assembling)

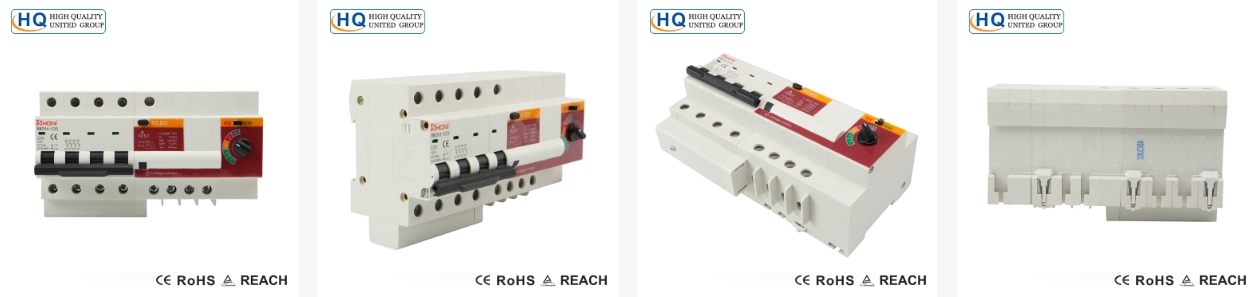

| Pole No. | 1P+N ,3P+N |
| Tripping curve | B, C |
| Rated current (A) | 6, 10, 16, 20, 25, 32, 40 |
| Rated voltage | 240V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current(mA) | 30,100,300 |
| Tripping duration | instantaneous 0.1s |
| Electro-mechanical endurance | 4000 cycles |
| Connection terminal | pillar terminal with clamp |
| Connection capacity | Flexible conductor 10mm2 Rigid conductor 16mm2 |
| Installation | On symmetrical DIN rail 35mm Panel mounting |
L7 miniature circuit breaker MCB is mainly used for protection against overload and short circuit under the AC 50Hz/60Hz, reted voltage 230V/400V and rated current from 1A to 63A. It also can be used for non-frequent on-and-off switch operation under normal circumstance.
In complicance with IEC/EN60898-1
With indicator function in the contact position.
Bilateral busbar wiring capabilities to adapt to the wider use of premises.Maximum connecting ability of 25mm2, wiring torque 3N*m, applicable to a variety of installing equipments, wiring stronger
Protection calss: IP20
| Rated Current In | 1A 2A 3A 4A 6A 10A 16A 20A 25A 32A 40A 50A 63A |
| Poles | 1P 2P 3P 4P 1P+N 3P+N |
| Rated Voltage Ue | 1P: 230/400V 2P/3P/4P: 400V |
| Rated Breaking Capacity | 6000A/10000A |
| Thermo-magnetic release characteristic | B C D |
| Electrical Life | 4000 |
| Mechanical Life | 10000 |
| Combination with Accessories | Auxiliary, Alarm, Shunt Release, Under Voltage Release |
| Certificate | CE CB SEMKO SAA CCC TUV |
| Guarantee | 2YEARS |
