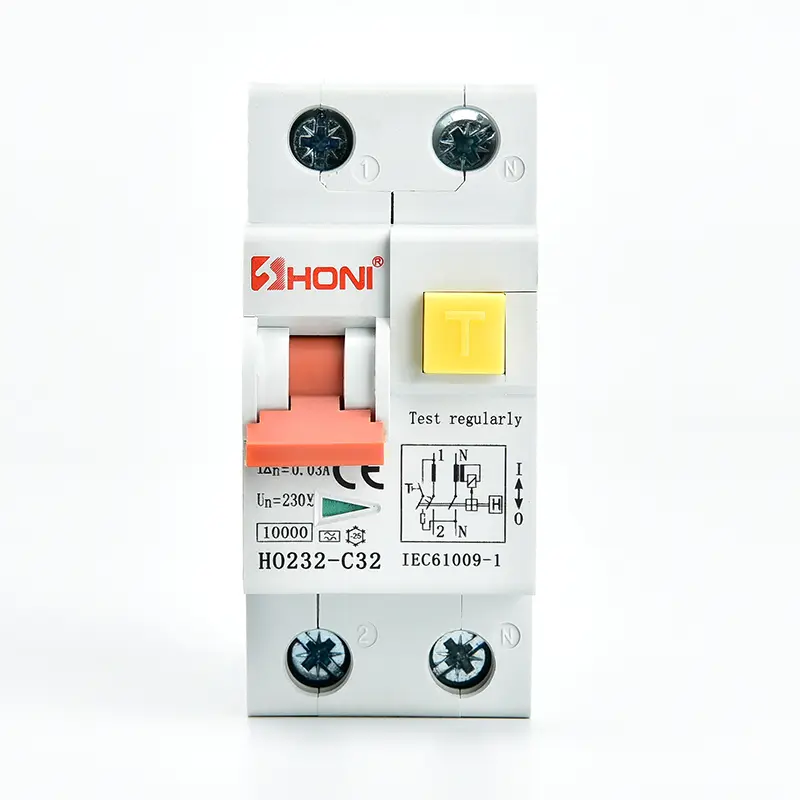

1. it can be wired in either direction.
2.It is accord with IEC 61009-2-1 (mains voltage independent RCBO), It is with electro-mechanical release that works safely even without supply voltage or line voltage lower than 50V.
3.Type -A: Protects against special forms of residual pulsating DC which have not been smoothed.
4.Provides protection against earth fault/leakage current, short-circuit,overload, and function of isolation.
5.Provides complementary protection against direct contact by human body Effectively protects electric equipment against insulating failure.
6.Provides comprehensive protection to household and commercial distribution systems.
7.high breaking capacity up to 10ka.more secure.
By combination with miniature circuit breaker => RCBO-Unit (MCCB) Add-on residual current unit (screw connection) for 80 or 125 A (2-pole and 4-pole)
• High flfl exibility and ease of installation thanks to variable wiring (400 mm flfl exible connection wires 2p = 2 units, 4p = 4 units included in the set)
• Free selection of main power supply
• Auxiliary switch 1 NO included as standard in all FBHmV versions
• Permits combinations with a variety of characteristics thanks to the different rated currents and characteristics of the miniature circuit breakers AZ which can be connected
• For trade and industry applications
• For subsequent mounting onto 2, 3, 3+N and 4-pole-miniature circuit breakers
• Toggle (serves as switch position- and tripping indicator)
• The screw connection to the device can be unscrewed at any time. Consequently, in case of modififi cations of the systems to be protected, the installation can be adapted to new requirements at any time.
• The test key “T” must be pressed every 6 months. The system operator must be informed of this obligation and his responsibility in a way that can beproven. Under special conditions (e.g. damp ly and/or dusty environments,environments with polluting and/or corroding conditions, environments with large temperature flfl uctuations, installations with a risk of overvoltages due to switching of equipment and/or atmospheric discharges, portable equipment...), it’s recommended to test in monthly intervals.
• Pressing the test key “T” serves the only purpose of function testing the residual current device (RCD). This test does not make earthing resistance measurement (RE), or proper checking of the earth conductor condition redun dant, which must be performed separately

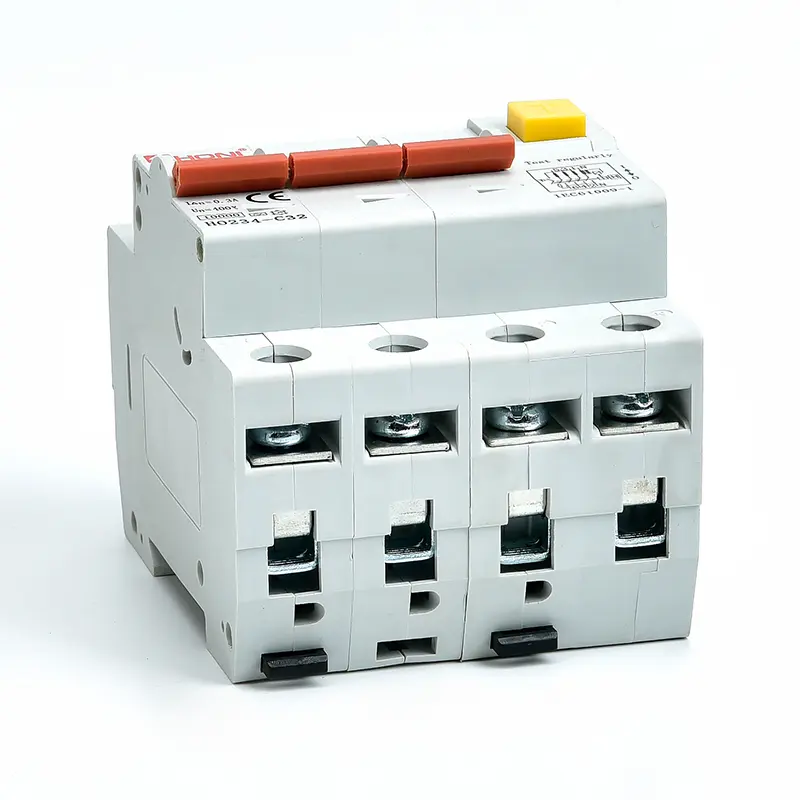

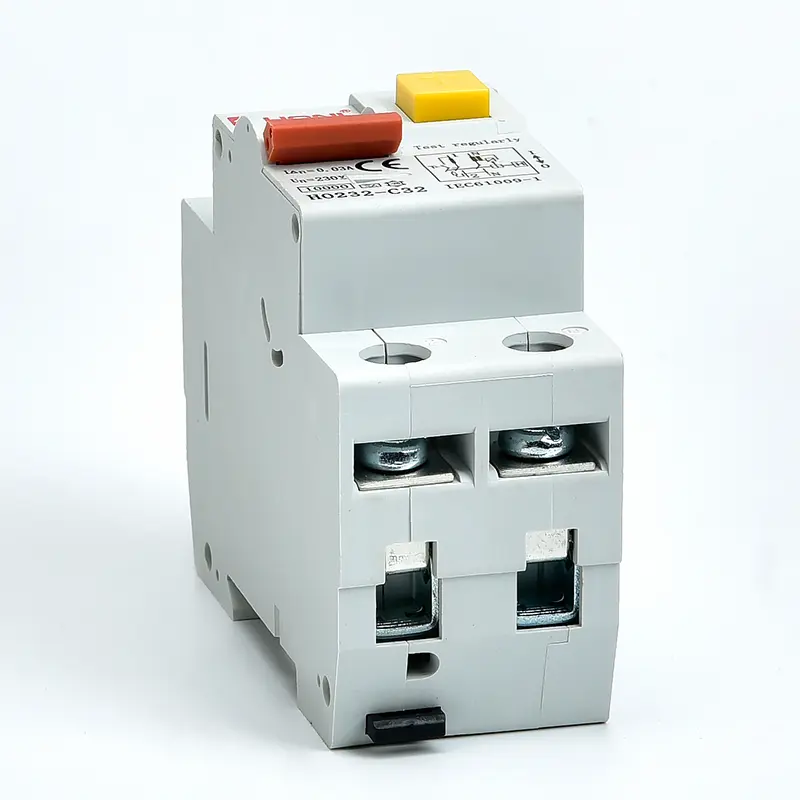

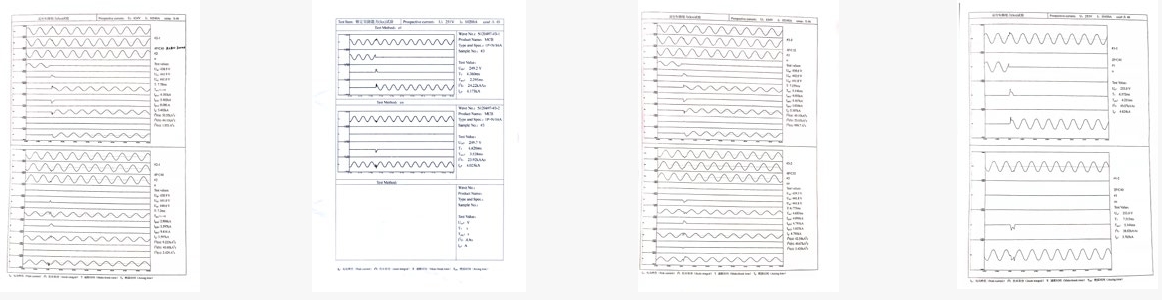

| ITEMS | DATA |
| Type | Electro-magnetic type |
| Residual current characteristics | AC, A |
| Pole No. | 1P+N,3P+N |
| Rated short-circuit capacity | 10000A |
| Rated current (A) | 1P+N:6,10,16,20,25,32,40,50,60A; 3P+N: |
| 6,10,16,20,25,32,40A | |
| Rated voltage | 240V/415V AC |
| Rated frequency | 50/60Hz |
| Rated residual operating current(mA) | 10,30,100,300 |
| Tripping duration | instantaneous 0.1s |
| Tripping characteristics | B，C，D |
| Rated short-circuit breaking capacity | 10000A |
| Rated impulse withstand voltage | Uimp 4kV(1.2/50μs） |
| Endurance | |
| Electrical components | ≥ 4,000 operating cycles |
| Mechanical components | ≥ 1,0000 operating cycles |
| Connection terminal | pillar terminal with clamp |

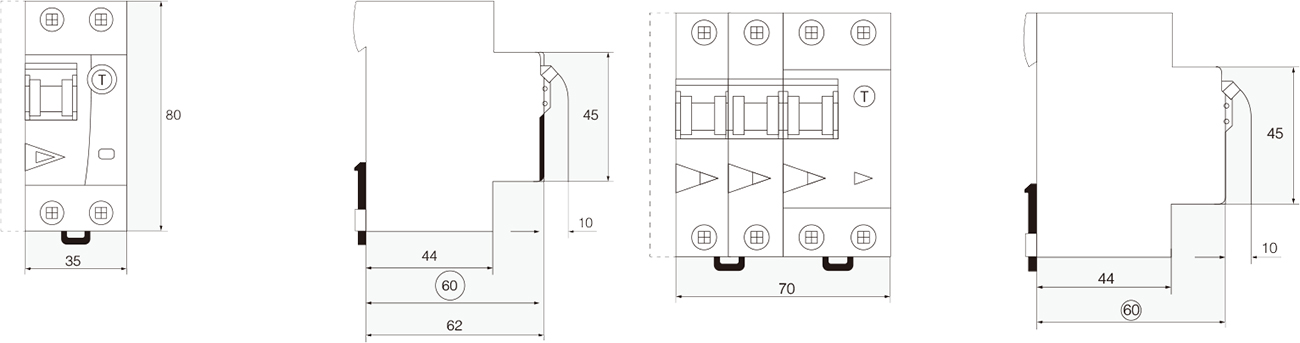

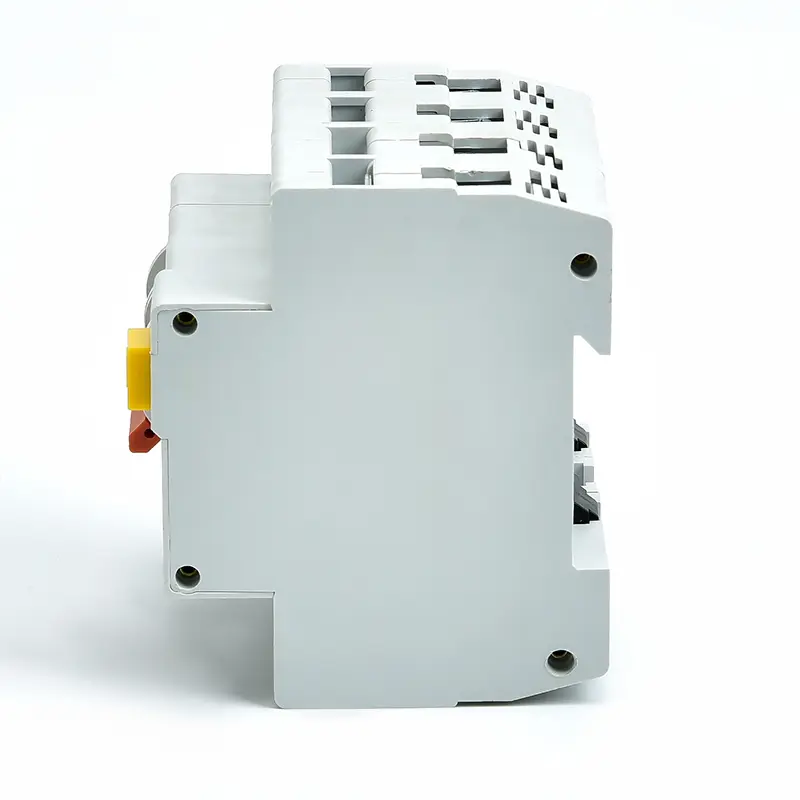

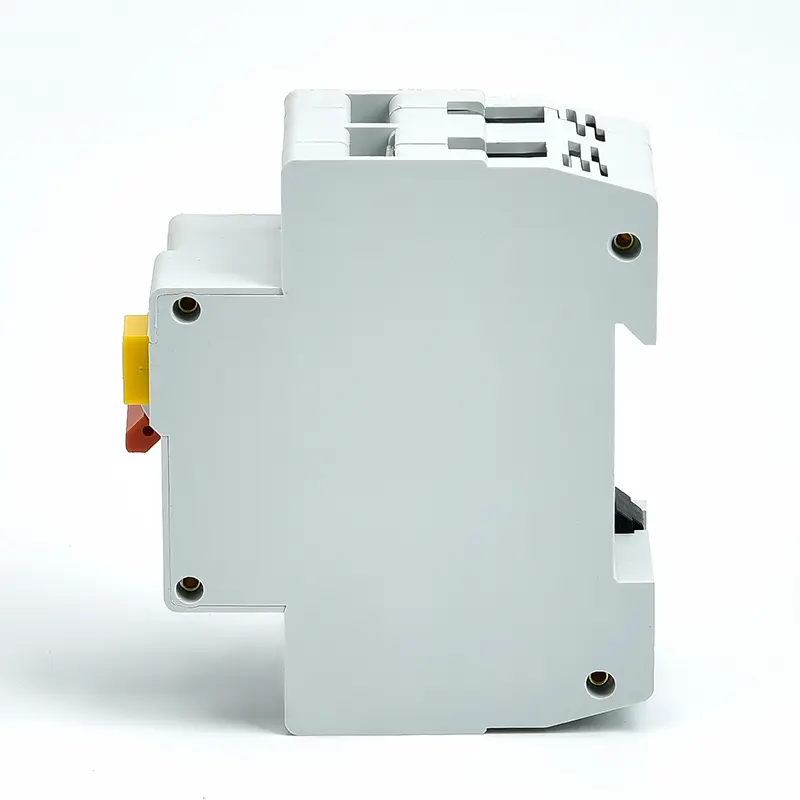

| Frame size | 45 mm |
| Device height | 80 mm |
| Device width | 35 mm (2MU) |
| Mounting | 3-position DIN rail clip, permits removal from existing |
| busbar system | |
| Degree of protection switch | IP20 |
| Degree of protection, built-in | IP40 |
| Upper and lower terminals | open mouthed/lift terminals |
| Terminal protection | finger and hand touch safe, DGUV VS3, EN 50274 |
| Terminal capacity | 1-25 mm2 |
| Terminal torque | 2-2.4 Nm |
| Busbar thickness | 0.8-2 mm |
| Operation temperature | -25℃ to +40℃ |
| Storage- and transport temperature | -35℃ to +60℃ |
| Resistance to climatic conditions | acc. to IEC 68-2 (25..55℃ / 90..95% RH) |
