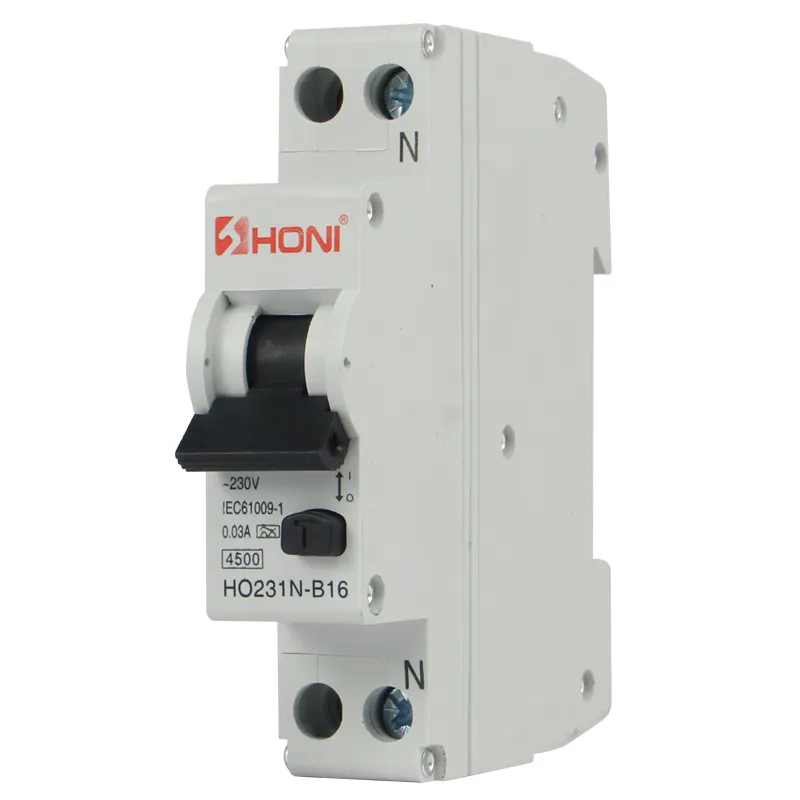

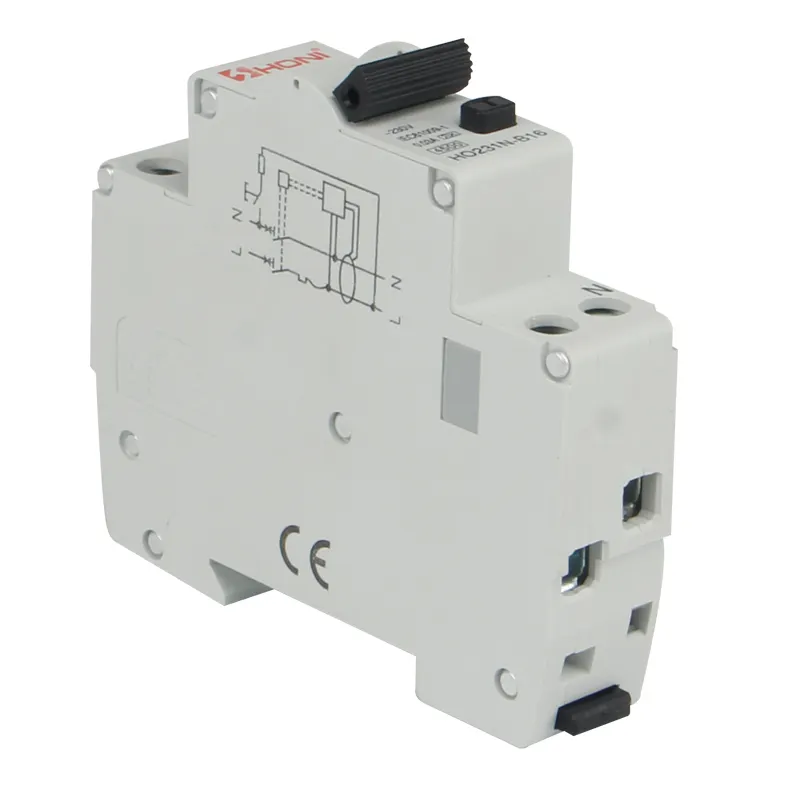

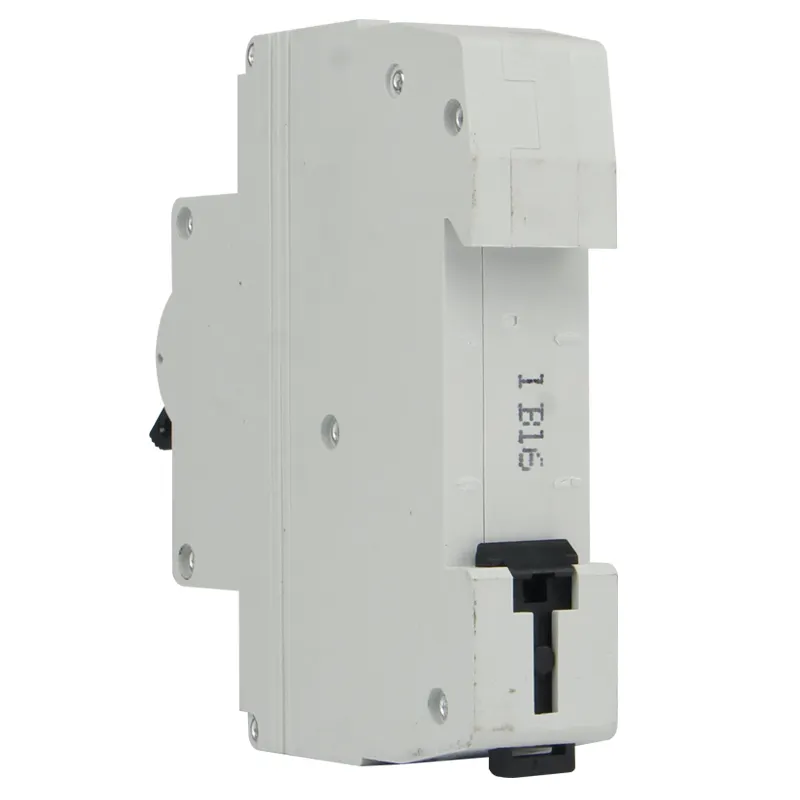

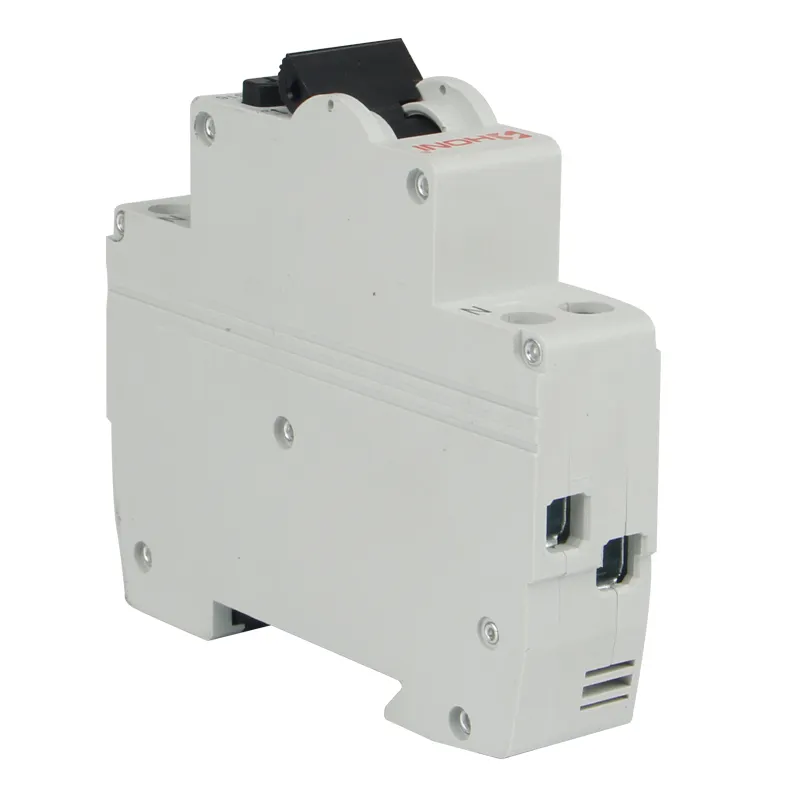

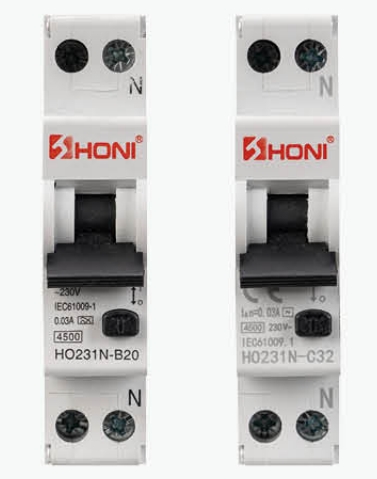

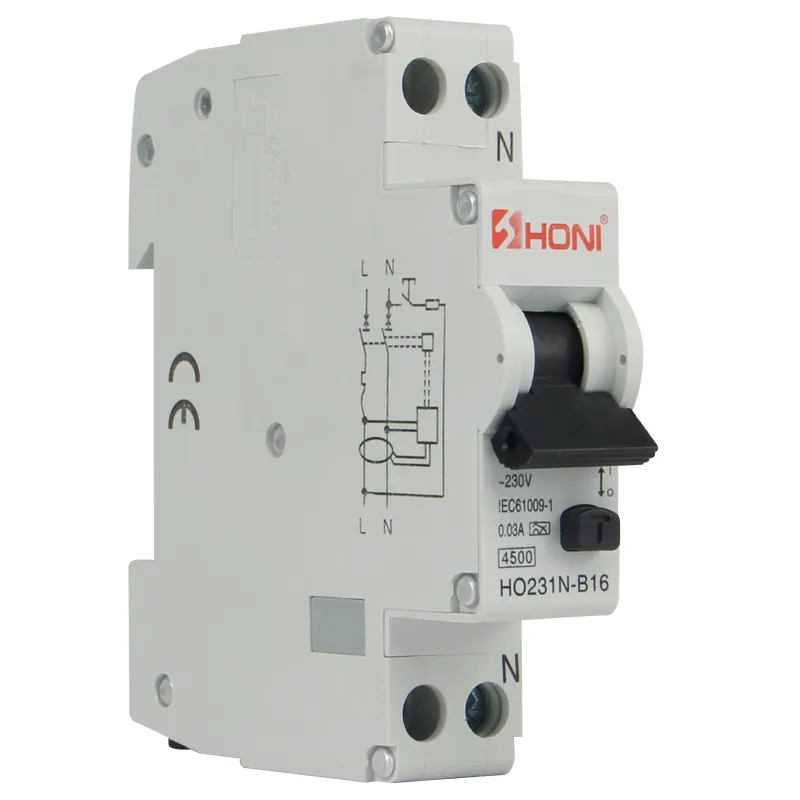

The new RCBO is a single pole plus switched neutral device where the line/load can be connected from top or bottom, Having no restriction to the connection of supply enhances the safety of your installation and the compact.Single pole size allows more poles to fit into assemblies, offering a cost effective solution. •Fully conforms to AS/NZS 61009-1 •Compliant to Energy Safe Victoria -Additional Testing Requirements forRCBOS. •Rated current up to 40A •Type AC and Type A sensitivity devices available It achieved Australia SAA certificate, and pass the ESV test, it is can be wired in either direction |  |
