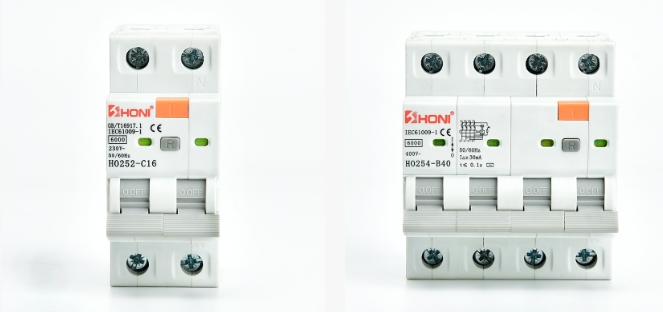

HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
PRODUCTS
PRODUCTS
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)
HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)

HO252-80HO254-80 Residual Current Circuit Breaker With Over-Current Protection (RCBO)

It is Electronic type in nature. The highlight here is that: 1.Type -A: Protects against special forms of residual pulsating DC which have not been smoothed. 2.Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation. 3.Provides complementary protection against direct contact by human body Effectively protects electric equipment against insulating failure. 4.Provides comprehensive protection to household and commercial distribution systems. 5.L Pole and N pole Both have the overload protection. 6.High breaking capacity up to 10KA ,more secure.

    Overview


    It is Electronic type in nature. The highlight here is that:


    1.Type -A: Protects against special forms of residual pulsating DC which have not been smoothed.

    2.Provides protection against earth fault/leakage current, short-circuit, overload, and function of isolation.

    3.Provides complementary protection against direct contact by human body Effectively protects electric equipment against insulating failure.

    4.Provides comprehensive protection to household and commercial distribution systems.

    5.L Pole and N pole Both have the overload protection.

    6.High breaking capacity up to 10KA ,more secure.






    Technical Data


    Product modelHO252-80HO254-80
    In accordance with Standard : IEC61009-1

    Pole number2P4P
    Shelf rating current                   A80
    Electrical properties
    Rated working Voltage     Ue        VAC230400
    Rated current            In         A1、2、3、4、6、10、16、20、25、32、40、50、63、80
    Leakage tripping typeA / AC

    Product modelHO252-80HO254-80
    Rated Insulation Voltage     Ui       V500
    Rated Impulse VoltageBreakdown Type limit       Uimp     kV4
    Split typeMH
    Breaking capacity operating   Icn     kA600010000
    Breaking capacity Force       Ics     kA
    Curve typeB、C、D
    Release typeThermomagnetic
    Service life(O~CO)20000
    8500
    10000
    1500
    Connection and installation
    Protection gradeAll sidesP40
    Connection portIP20
    Handle lockON/OFF Position
    Connection ability       mm²1~35
    Use ambient temperature   ℃-30~+70
    Humidity and heat resistance2
    Altitude                  m≤ 2000
    Relative humidity of air+20℃ ≤ 95%;+40℃ ≤ 50%
    Pollution grade3
    Installation environmentWithout signi cant vibration and impact
    Installation category
    Installation modeDIN Standard guide rail
    Shape dimensions (mm)Wide * High * Deepa35.270.4
    b8282
    c72.672.6
    Weightg210.5210.5

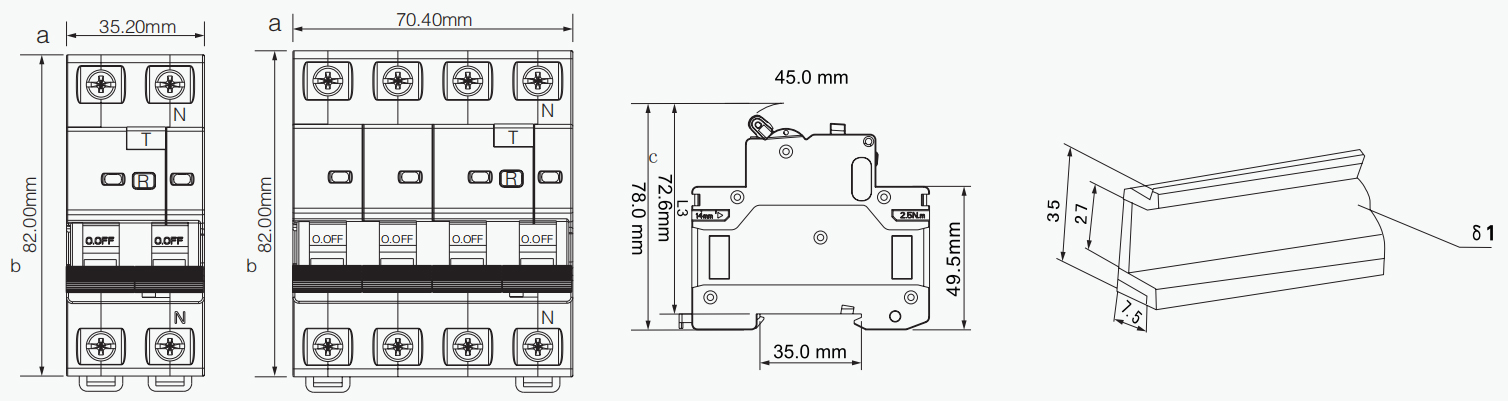

    Dimensions(mm)
