Easy installation or retrofifit
Din-rail mountable
Fail-safe /self-protected design
Remote indicator (optional) with 3 pin NO/NC contact
IP20 fifinger-safe design
Visual indicator
Small foot print

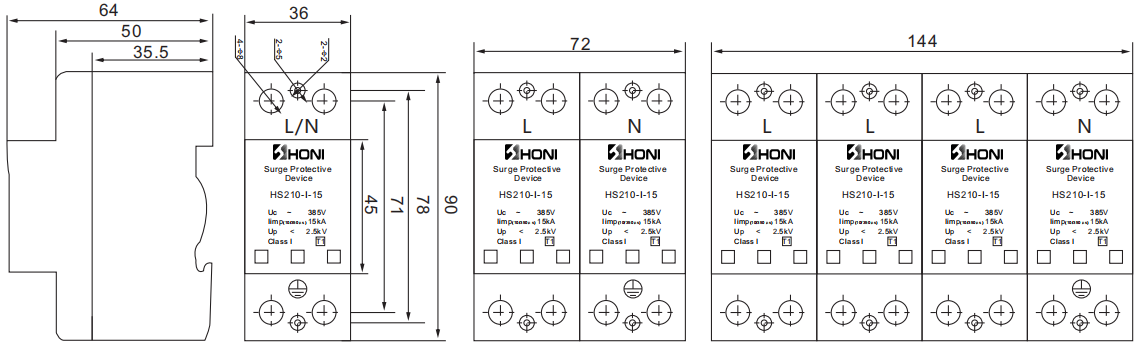

HS210-I-15 is the most robust range of Type 1/Class I lightning current arresters, able to discharge energy (current) from a direct lightning strike (10/350) on an external lightning protection system (LPS) or overhead supplies, in accordance with EN/IEC 61643-11. DIN rail monobloc format.
■Suitable as a fifirst step of protection in incoming power supply panels and in areas of high atmospheric exposure.
■Discharges impulse currents with a 10/350 μs waveform: 15 kA per phase.
■Exclusive devices for TNS, TNC, TT , IT earthing systems.
■Exclusive devices which are compatible with Power Line Communication networks.
■Biconnect – two types of terminal: for rigid or flflexible cable and for fork type comb busbar.
■Available with optional remote signalling.
| Type Technical Data Maximum continuous voltage (UC) (L-N) | HS210-I-15 385 / 420V |
| Maximum continuous voltage (UC) (N-PE) | 275V |
| SPD to EN 61643-11, IEC 61643-11 | Type 1+2 , class I+II |
| Lightning impulse current (10/350μs) (Iimp) | 15kA |
| Nominal discharge current (8/20μs) (In) | 60kA |
| Maximum discharge current (8/20μs) (Imax) | 100kA |
| Voltage protection level (Up) (L-N) | ≤ 2.5kV |
| Voltage protection level (Up) (N-PE) | ≤ 2.0kV |
| Response time (tA) (L-N) | < 25ns |
| Response time (tA) (N-PE) | < 100ns |
| Thermal Protection | YES |
| Operating State/Fault Indication | Red (replace) |
| Degree of protection | IP 20 |
| Insulating material / flammability class | PA66,UL94 V-0 |
| Temperature range | -40ºC~+80ºC |
| Altitude | 13123 ft [4000m] |
| Conductor Cross Section (max) | 35mm2 (Solid) / 25mm2 (Flexible) |
| Remote Contacts (RC) | Optional |
| Format | Monobloc |
| For mounting on | DIN rail 35mm |
| Place of installation | indoor installation |
