Easy installation
Low Insertion Loss
Wide operating frequency spectrum
Very fast response
High Energy GDT Technology
Field Replaceable GDT
Waterproof Design
DC Pass confifiguration
Bi-Directional Protection
Good transmission effect
Strong anti-interference
complies IEC 61643-21 standard
HS2W is the series of devices for discharging transient overvoltages induced in coaxial lines. In accordance with IEC 61643-21. Coaxial format.
■Suitable for the protection of radiofrequency transmission and reception equipment.
By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.

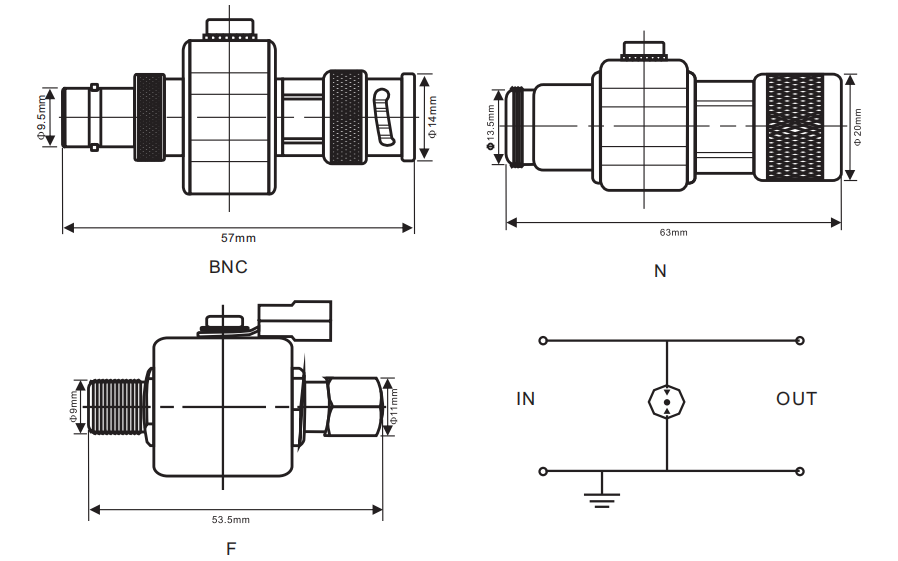

■For BNC, F, N, TNC,connectors.
■Ideal for the protection of transmission and reception systems such as TV and radio antennas, closed circuit TV (CCTV), alarms, etc.
■Discharge capacity with an 8/20 μs waveform: 20 kA.
Type Technical Data Frequency | HS2W-BNC,HS2W-F,HS2W-N,HS2W-TNC 0-3GHZ |
| Maximum continuous operating voltage (UC) | 230V |
| Nominal discharge current (8/20μs) (In) | 10kA |
| Maximum discharge current (8/20μs) (Imax) | 20kA |
| Voltage protection level (8/20μs) (Up) | ≤ 600V |
| Maximum Current | 10A |
| Maximum peak power | 100W |
| Impedance | 50Ω |
| Insertion Loss | < 0.2dB |
| Return Loss | > 20dB |
| VSWR | < 1.2:1 |
| Response time (tA) | < 100ns |
| Degree of protection | IP 65 |
| Enclosure Material | Metal |
| Temperature range | -40ºC~+80ºC |
| Altitude | 13123 ft [4000m] |
| Connection | BNC, F, N ,TNC |
| Housing | In-line Installation |
| Field Replaceable GDT | YES |
| Type of SPD | C2,C3 |
| Product standards | IEC 61643-21, EN 61643-21 |
