Easy installation
Fail-safe /self-protected design
Very fast response
Hybrid GDT and Diode Technology
Long distance transmission
Good transmission effect
Strong anti-interference
complies IEC 61643-21 standard

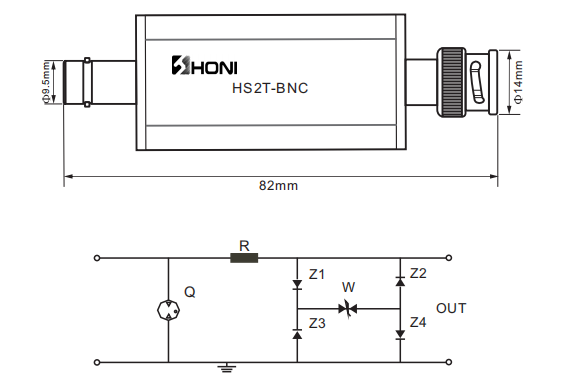

HS2T-BNC is the series of devices for discharging transient overvoltages induced in coaxial lines. In accordance with IEC 61643-21. Coaxial format.
■Suitable for the protection of coaxial lines of TV and CCTV systems. By their nature, they are highly exposed to induced transient overvoltages (surges) associated with meteorological activity.
■Discharge capacity with an 8/20 μs waveform: 20 kA.
■No installation required. It connects directly to the equipment to be protected via BNC connectors.
■Available with optional Din-rail mountable.
Type Technical Data Application | HS2T-BNC CCTV systems |
| Frequency | 100 MHZ |
| Transmission Rate | 16 Mb/s |
| Nominal voltage (Un) | 5V |
| Maximum continuous operating voltage (UC) | 8V |
| Nominal discharge current (8/20μs) (In) | 10kA |
| Maximum discharge current (8/20μs) (Imax) | 20kA |
| Voltage protection level (8/20μs) (Up) | ≤ 120V |
| Maximumworking current (IL) | 300mA |
| Impedance | 75Ω |
| Response time (tA) | < 10ns |
| Degree of protection | IP 20 |
| External materials | Aluminum |
| Temperature range | -40ºC~+80ºC |
| Altitude | 13123 ft [4000m] |
| Connection (input – output) | BNC |
| Type of connection | Series (two ports) |
| For mounting on | Optional Din-rail mountable |
| Place of installation | indoor installation |
| Type of SPD | C2,C3 |
| Product standards | IEC 61643-21, EN 61643-21 |
