Easy installation
Fail-safe /self-protected design
Very fast response
Hybrid GDT and Diode Technology
10/100/1000 Mbps and Gigabit Compatible
High-Speed Protector technology
Bi-Directional Protection
Shielded Enclosure and Connectors

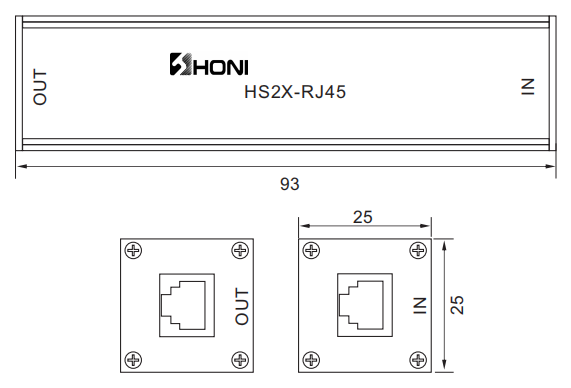

HS2X-RJ45 is the series of devices for discharging transient overvoltages induced in Ethernet Category 5.E and 6 networks.In accordance with IEC 61643-21. In-line format.
■Suitable for the protection of communications equipment connected to Ethernet networks. By their nature, they are highly exposed to induced transient overvoltages (surges) associatedwith meteorological activity.
■No installation required. It connects directly to the equipment to be protected via RJ45 connectors.
■Input/Output connectors: RJ45 (female).
■Available with optional Din-rail mountable.
| Type Technical Data Application | HS2X-RJ45-6 | HS2X-RJ45-24 | HS2X-RJ45-POE | HS2X-RJ45- CAT6-1000 | HS2X-RJ45-CAT6-POE |
| Cat 5 , Cat 5e | Cat 6 | ||||
| Maximum Data Rate | 100Mbit/s | 1000Mbit/s | |||
| Bandwidth | 100MHz | 250MHz | |||
| Nominal voltage (Un) | 5Vdc | 24Vdc | 48Vdc | 5Vdc | 48Vdc |
| Maximum continuous operating voltage (UC) | 6Vdc | 30Vdc | 65Vdc | 6Vdc | 65Vdc |
| Voltage protection level (8/20μs) (Up) | ≤ 30V | ≤ 40V | ≤ 100V | ≤ 30V | ≤ 100V |
| Nominal discharge current (8/20μs) (In) | 3kA | ||||
| Maximumworking current (IL) | 300mA | ||||
| Series resistance (RS) | 15Ω | ||||
| Response time (tA) | < 10ns | ||||
| Degree of protection | IP 20 | ||||
| Pins Protected | 1,2,3,6 | 1-2,3-6,4-5,7-8 | |||
| External materials | Aluminum | ||||
| Temperature range | -40ºC~+80ºC | ||||
| Altitude | 13123 ft [4000m] | ||||
| Connection (input – output) | RJ45 | ||||
| Type of connection | Series (two ports) | ||||
| For mounting on | Optional Din-rail mountable | ||||
| Place of installation | indoor installation | ||||
| Type of SPD | C2,C3 | ||||
| Product standards | IEC 61643-21, EN 61643-21 | ||||
