Easy installation or retrofifit
Din-rail mountable
Fail-safe /self-protected design
Remote indicator (optional) with 3 pin NO/NC contact
IP20 fifinger-safe design
Visual indicator
Small foot print

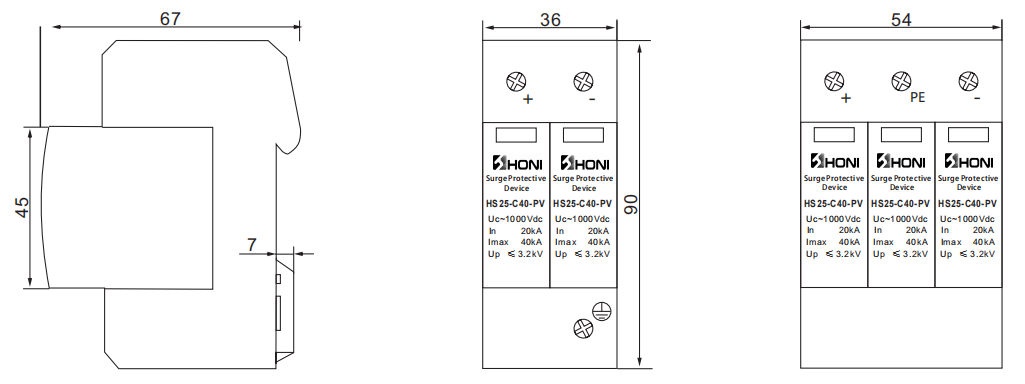

HS25-C40-PV series of DC Surge Protective Device (SPD) for use in Photovoltaic applications. surge protective devices provide protection from lightning current and overvoltage surges in system from 500Vdc to 1500Vdc.
Providing power with photovoltaic solar panels is tremendously interesting in the context of renewable energy sources, as regards economical photovoltaic systems connected to the public electricity network. Because of their exposition, frequently in isolated sites and of the extended surface of photovoltaic systems (PV), lightning strikes are a major components in the risk to be assumed, both for the direct effect of lightning on the structures, and of the surge overvoltages on the installation.
Cells are generally associated with inverters. CUAJE® has developed a specifc Din
Rail product to protect DC side of cells and inverters against surge in power plant or residential application.
With the MOV (Metal Oxside Varistor), the overvoltage will be limited at the value of the voltage protection level of the OBV5-C40-PV DC surge protector. Our surge protector, as recommended in standards and guides, insure all protections (between + and-, + and Ground, – and Ground). On each surge arrester, as option, an available auxiliary contact will inform the end life status to ensure a maximum effciency.
| TypeTechnical Data Network configuration | HS25-C40-PV
Photovoltaic (PV) |
| Maximum continuous voltage (UC) | 600 / 900 / 1000 / 1200 / 1500Vdc |
| SPD to EN 61643-11 | Type 2 |
| SPD to IEC 61643-11 | class II |
| Nominal discharge current (8/20μs) (In) | 20kA |
| Maximum discharge current (8/20μs) (Imax) | 40kA |
| Voltage protection level (Up) | ≤ 2.5 / 3.0 / 3.2 / 3.6 / 4.5kV |
| Response time (tA) | < 25ns |
| Thermal Protection | YES |
| Operating State/Fault Indication | Green (good) / Red (replace) |
| Degree of protection | IP 20 |
| Insulating material / flammability class | PA66,UL94 V-0 |
| Protective Elements | High Energy MOV |
| Temperature range | -40ºC~+80ºC |
| Altitude | 13123 ft [4000m] |
| Conductor Cross Section (max) | 35mm2 (Solid) / 25mm2 (Flexible) |
| Remote Contacts (RC) | Optional |
| Format | Pluggable |
| Internal configuration | (Y) or (U) |
| For mounting on | DIN rail 35mm |
| Place of installation | indoor installation |
