Lightning strike counter with mechanical countersurge protective devices (spd)

Application

The lightning strike counter HS2G-3M is a device designed to detect lightning strikes upon any external lightning protection system(lightning rods, ESE, faraday cages, etc…).

HS2G-3M detects the electrical energy that is derived to the ground trough a conductor when a lightning impact occurs. The device registers each impact incrementing the counter in one unit each time. OBVG-3M must be installed in the down conductor that connects the lightning rod to the grounding system. It does not use any type of power supply because it uses the electric energy of the lightning.

Lightning strike counter is used for recording times of lightning strike of various kinds of lightning eliminators and lightning rod.

    Product Details

    Features


    Great register capacity (99999 impulses).

    Easy visual control.

    Detection of impulses from:

    Intensity min: 1kA (8/20μs).

    Intensity max: 100kA (10/350μs).

    Compact and robust design.

    Durability.

    Resettable model.

    Easy adaptation to the down conductor of any lightning protection system.

    Allows controlling the lightning rod condition.

    Works in any atmospheric condition (from -20ºC to 65ºC).

    It does not need power supply.

    Easy installation and operation.

    Secure fastening by steel parts.


    Data sheet


    Type

    Technical Data

    Min. current recorded

    HS2G-3M


    1 kA (8/20 μs)

    Max. current recorded

    100 kA (10/350 μs)

    Range of register

    from 0 to 99999 impulses

    Temperature range

    -20ºC to 65ºC

    Dimensions (mm)

    150×70×40

    External materials

    corrosion resisting steel

    Installation

    Stainless steel hoop

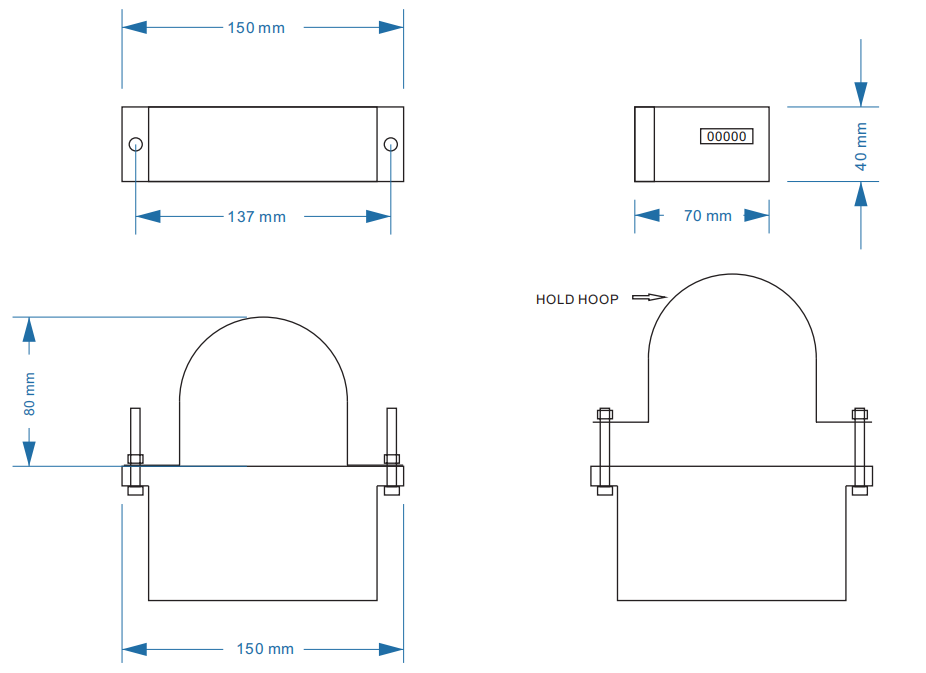

    Dimensions
