Easy installation or retrofifit
Din-rail mountable
Fail-safe /self-protected design
IP20 fifinger-safe design
Small foot print
HS210-I-50 is the most robust range of Type 1/Class I lightning current arresters, able to discharge energy (current) from a direct lightning strike (10/350) on an external lightning protection system (LPS) or overhead supplies, in accordance with EN/IEC 61643-11. DIN rail monobloc format.
■Suitable as a fifirst step of protection in incoming power supply panels and in areas of high atmospheric exposure.
■Discharges impulse currents with a 10/350 μs waveform: 50 kA per phase.
■Exclusive devices for TNS, TNC, TT , IT earthing systems.
■Exclusive devices which are compatible with Power Line Communication networks.
■Biconnect – two types of terminal: for rigid or flflexible cable and for fork type comb busbar.

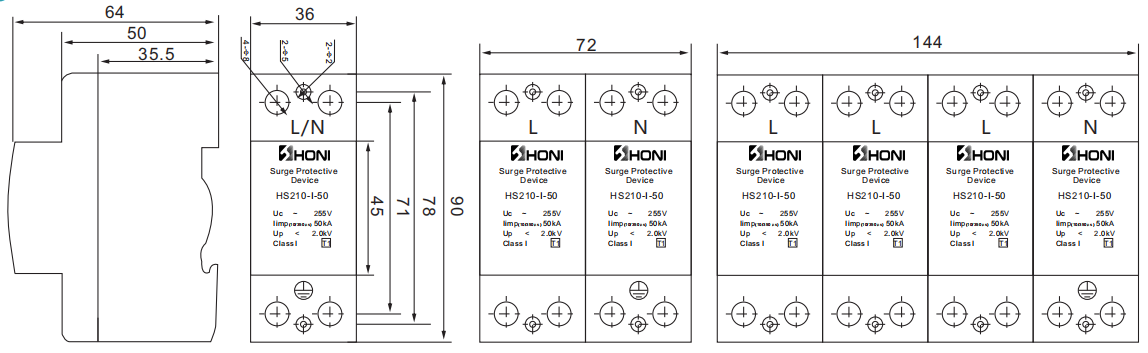

| TypeTechnical DataNominal line voltage (Un) | HS210-I-50 230/400 V (50/60Hz) |
| Maximum continuous voltage (UC) (L-N) | 255V |
| Maximum continuous voltage (UC) (N-PE) | 255V |
| SPD to EN 61643-11 | Type 1 |
| SPD to IEC 61643-11 | class I |
| Lightning impulse current (10/350μs) (Iimp) | 50kA |
| Nominal discharge current (8/20μs) (In) | 50kA |
| Voltage protection level (Up) (L-N) | ≤ 2.0kV |
| Voltage protection level (Up) (N-PE) | ≤ 2.0kV |
| Response time (tA) (L-N) | < 100ns |
| Response time (tA) (N-PE) | < 100ns |
| Operating State/Fault Indication | no |
| Degree of protection | IP 20 |
| Insulating material / flammability class | PA66,UL94 V-0 |
| Temperature range | -40ºC~+80ºC |
| Altitude | 13123 ft [4000m] |
| Conductor Cross Section (max) | 35mm2 (Solid) / 25mm2 (Flexible) |
| Remote Contacts (RC) | no |
| Format | Monobloc |
| For mounting on | DIN rail 35mm |
| Place of installation | indoor installation |
●The power must be cut off before installation, and live operation is strictly prohibited
●It is recommended to connect a fuse or automatic circuit breaker in series at the front of the lightning protection module
●When installing, please connect according to the installation diagram. Among them, L1, L2, L3 are phase wires, N is the neutral wire, and PE is the ground wire. Do not connect it wrongly. After installation, close the automatic circuit breaker (fuse) switch
●After installation, check whether the lightning protection module is working properly 10350gs, discharge tube type, with window: during use, the fault display window should be checked and checked regularly. When the fault display window is red (or the remote signal terminal of the product with remote signal output alarm signal), it means the lightning protection module In the event of failure, it should be repaired or replaced in time.
●Parallel power supply lightning protection modules should be installed in parallel (Kevin wiring can also be used), or double wiring can be used. Generally, you only need to connect any one of the two wiring posts. The connecting wire must be firm, reliable, short, thick, and straight.
